MER3-G3-P Series

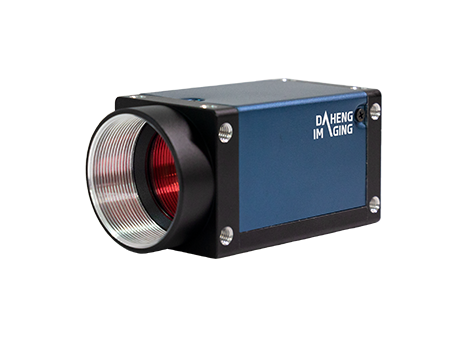

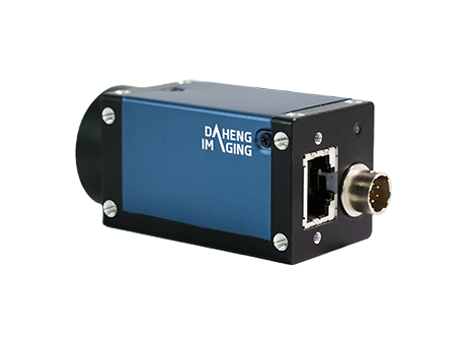

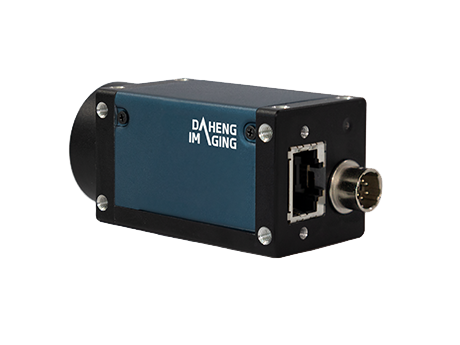

DAHENG IMAGING MERCURY3 series camera with the Sony "Pregius S" CMOS sensor and high performance FPGA is capable of 2.5Gbit/s maximum transfer data rate, and has opto-isolated I/Os that adapt to specific needs. Four-side mounting holes provide maximum installation flexibility for camera. Thanks to the extremely compact (29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY3 series camera can secure the reliability of cameras deployed in harsh environments.

MER3-G3-P Series

Get MER3-G3-P Series Manual 更多特性

2.5 Gbit/s with Power over Etherent 300MB/s brandwidth, higher speed, reliable quality	Sony 4th generation Pregius S sensor Back illuminated, reduce noise, higher sensitivity	▲-AF models support autofocus ▲
Compact, 29mm×29mm package Maximizes the transmission capacity of the camera in a limited volume	Rich functions, higher image quality Support ultrashort exposure, Sequencer, Brust, etc, optimize image quality
Low power consumption, more speed The best combination of cost, performance and size	Easy software integration Compatibility to the HALCON, VisionPro, LabVIEW, etc popular third party softwares

Model	Resolution	Frame Rate (fps)	Sensor	Pixel Size	Data Interface	Spectrum

MER3-033-262G3M-P-SWIR F02	640×512	139.33	1/4" IMX991 Global shutter CMOS	5μm	2.5GigE	Mono/SWIR
Resolution:640×512 Frame Rate (fps):139.33 Sensor:1/4" IMX991 Global shutter CMOS Pixel Size:5μm Data Interface:2.5GigE Spectrum:Mono/SWIR
MER3-138-136G3M-P-SWIR F02	1280×1024	72.4	1/2" IMX990 Global shutter CMOS	5μm	2.5GigE	Mono/SWIR
Resolution:1280×1024 Frame Rate (fps):72.4 Sensor:1/2" IMX990 Global shutter CMOS Pixel Size:5μm Data Interface:2.5GigE Spectrum:Mono/SWIR
MER3-321-91G3M-P-SWIR F02	2080×1544	91	1/1.8" IMX993 Global shutter CMOS	3.45μm	2.5GigE	Mono/SWIR
Resolution:2080×1544 Frame Rate (fps):91 Sensor:1/1.8" IMX993 Global shutter CMOS Pixel Size:3.45μm Data Interface:2.5GigE Spectrum:Mono/SWIR
MER3-501-59G3M-P	2448×2048	56.05	Global shutter CMOS	3.45μm	2.5GigE	Mono
Resolution:2448×2048 Frame Rate (fps):56.05 Sensor:Global shutter CMOS Pixel Size:3.45μm Data Interface:2.5GigE Spectrum:Mono
MER3-501-59G3C-P	2448×2048	56.05	Global shutter CMOS	3.45μm	2.5GigE	Color
Resolution:2448×2048 Frame Rate (fps):56.05 Sensor:Global shutter CMOS Pixel Size:3.45μm Data Interface:2.5GigE Spectrum:Color
MER3-506-58G3M-P	2448×2048	58.6	1/1.8" IMX547 Global shutter CMOS	2.74μm	2.5GigE	Mono
Resolution:2448×2048 Frame Rate (fps):58.6 Sensor:1/1.8" IMX547 Global shutter CMOS Pixel Size:2.74μm Data Interface:2.5GigE Spectrum:Mono
MER3-506-58G3C-P	2448×2048	58.6	1/1.8" IMX547 Global shutter CMOS	2.74μm	2.5GigE	Color
Resolution:2448×2048 Frame Rate (fps):58.6 Sensor:1/1.8" IMX547 Global shutter CMOS Pixel Size:2.74μm Data Interface:2.5GigE Spectrum:Color
MER3-506-58G3M-P-AF	2448×2048	58.6	1/1.8" IMX547 Global shutter CMOS	2.74μm	2.5GigE	Mono
Resolution:2448×2048 Frame Rate (fps):58.6 Sensor:1/1.8" IMX547 Global shutter CMOS Pixel Size:2.74μm Data Interface:2.5GigE Spectrum:Mono
MER3-506-58G3C-P-AF	2448×2048	58.6	1/1.8" IMX547 Global shutter CMOS	2.74μm	2.5GigE	Color
Resolution:2448×2048 Frame Rate (fps):58.6 Sensor:1/1.8" IMX547 Global shutter CMOS Pixel Size:2.74μm Data Interface:2.5GigE Spectrum:Color
MER3-533-55G3M-P-SWIR F02	2592×2056	55	1/1.4" IMX992 Global shutter CMOS	3.45μm	2.5GigE	Mono/SWIR
Resolution:2592×2056 Frame Rate (fps):55 Sensor:1/1.4" IMX992 Global shutter CMOS Pixel Size:3.45μm Data Interface:2.5GigE Spectrum:Mono/SWIR
MER3-800-36G3M-P	2840×2840	36.42	2/3" IMX546 Global shutter CMOS	2.74μm	2.5GigE	Mono
Resolution:2840×2840 Frame Rate (fps):36.42 Sensor:2/3" IMX546 Global shutter CMOS Pixel Size:2.74μm Data Interface:2.5GigE Spectrum:Mono
MER3-800-36G3C-P	2840×2840	36.42	2/3" IMX546 Global shutter CMOS	2.74μm	2.5GigE	Color
Resolution:2840×2840 Frame Rate (fps):36.42 Sensor:2/3" IMX546 Global shutter CMOS Pixel Size:2.74μm Data Interface:2.5GigE Spectrum:Color
MER3-800-36G3M-P-AF	2840×2840	36.42	2/3" IMX546 Global shutter CMOS	2.74μm	2.5GigE	Mono
Resolution:2840×2840 Frame Rate (fps):36.42 Sensor:2/3" IMX546 Global shutter CMOS Pixel Size:2.74μm Data Interface:2.5GigE Spectrum:Mono
MER3-800-36G3C-P-AF	2840×2840	36.42	2/3" IMX546 Global shutter CMOS	2.74μm	2.5GigE	Color
Resolution:2840×2840 Frame Rate (fps):36.42 Sensor:2/3" IMX546 Global shutter CMOS Pixel Size:2.74μm Data Interface:2.5GigE Spectrum:Color
MER3-810-36G3M-P-UV F02	2856×2848	36.13	2/3" IMX487 Global shutter CMOS	2.74μm	2.5GigE	UV
Resolution:2856×2848 Frame Rate (fps):36.13 Sensor:2/3" IMX487 Global shutter CMOS Pixel Size:2.74μm Data Interface:2.5GigE Spectrum:UV
MER3-810-36G3M-P-UV-AF F02	2856×2848	36.13	2/3" IMX487 Global shutter CMOS	2.74μm	2.5GigE	UV
Resolution:2856×2848 Frame Rate (fps):36.13 Sensor:2/3" IMX487 Global shutter CMOS Pixel Size:2.74μm Data Interface:2.5GigE Spectrum:UV
MER3-1220-24G3M-P	4024×3036	23.0	1/1.7" IMX226 Rolling shutter CMOS	1.85μm	2.5GigE	Mono
Resolution:4024×3036 Frame Rate (fps):23.0 Sensor:1/1.7" IMX226 Rolling shutter CMOS Pixel Size:1.85μm Data Interface:2.5GigE Spectrum:Mono
MER3-1220-24G3C-P	4024×3036	23.0	1/1.7" IMX226 Rolling shutter CMOS	1.85μm	2.5GigE	Color
Resolution:4024×3036 Frame Rate (fps):23.0 Sensor:1/1.7" IMX226 Rolling shutter CMOS Pixel Size:1.85μm Data Interface:2.5GigE Spectrum:Color
MER3-1221-24G3M-P	4096×3000	23.9	1/1.1" IMX545 Global shutter CMOS	2.74μm	2.5GigE	Mono
Resolution:4096×3000 Frame Rate (fps):23.9 Sensor:1/1.1" IMX545 Global shutter CMOS Pixel Size:2.74μm Data Interface:2.5GigE Spectrum:Mono
MER3-1221-24G3C-P	4096×3000	23.9	1/1.1" IMX545 Global shutter CMOS	2.74μm	2.5GigE	Color
Resolution:4096×3000 Frame Rate (fps):23.9 Sensor:1/1.1" IMX545 Global shutter CMOS Pixel Size:2.74μm Data Interface:2.5GigE Spectrum:Color
MER3-1221-24G3M-P-AF	4096×3000	23.9	1/1.1" IMX545 Global shutter CMOS	2.74μm	2.5GigE	Mono
Resolution:4096×3000 Frame Rate (fps):23.9 Sensor:1/1.1" IMX545 Global shutter CMOS Pixel Size:2.74μm Data Interface:2.5GigE Spectrum:Mono
MER3-1221-24G3C-P-AF	4096×3000	23.9	1/1.1" IMX545 Global shutter CMOS	2.74μm	2.5GigE	Color
Resolution:4096×3000 Frame Rate (fps):23.9 Sensor:1/1.1" IMX545 Global shutter CMOS Pixel Size:2.74μm Data Interface:2.5GigE Spectrum:Color
MER3-2000-15G3M-P	5496×3672	13.92	1" IMX183 Rolling shutter CMOS	2.4μm	2.5GigE	Mono
Resolution:5496×3672 Frame Rate (fps):13.92 Sensor:1" IMX183 Rolling shutter CMOS Pixel Size:2.4μm Data Interface:2.5GigE Spectrum:Mono
MER3-2000-15G3C-P	5496×3672	13.92	1" IMX183 Rolling shutter CMOS	2.4μm	2.5GigE	Color
Resolution:5496×3672 Frame Rate (fps):13.92 Sensor:1" IMX183 Rolling shutter CMOS Pixel Size:2.4μm Data Interface:2.5GigE Spectrum:Color
