MER3-U3D Series - DAHENG IMAGING—Dedicated to Machine Vision

High-Speed, Stable
USB3.2 Gen2 interface, Maximum bandwidth: 800MB/s

Sony 4th generation Pregius S sensor
Back illuminated, reduce noise, higher sensitivity

Compact, Light
29×29mm ultra-small size

Rich functions, better image quality
Support Sequencer, UltraShort exposure, Gamma, etc, optimize image quality

Low power consumption, more speed
The best combination of performance and size

Applications
Industrial appearance inspection, biomedical, and electronic component inspection fields

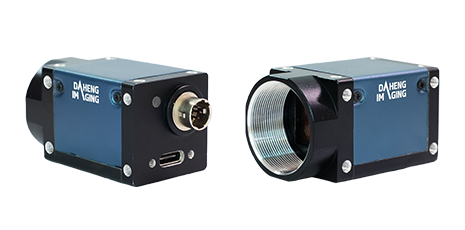

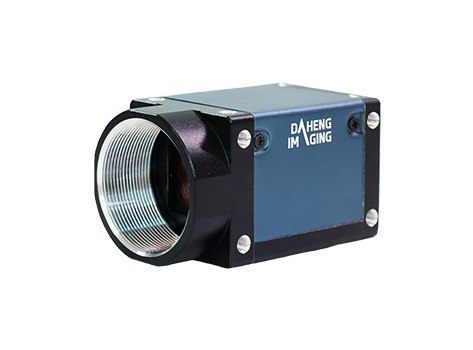

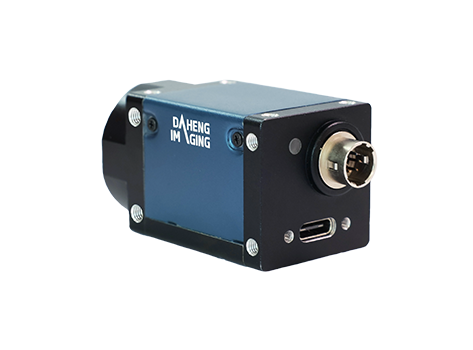

MER3-U3D Series

The MER3-U3D series camera is equipped with Sony sensor and uses USB3.2 interface for high-speed transmission of image data, featuring high quality images, small housing, and fexible installation. The camera is capable of 10Gbps maximum transfer data rate. Four-side mounting holes provide maximum installation flexibility for camera and locking screw connectors can secure the reliability of cameras deployed in harsh industrial environments.

MER3-U3D Series

Get MER3-U3D Series Manual 更多特性

Model	Resolution	Frame Rate (fps)	Sensor	Pixel Size	Data Interface	Spectrum

MER3-1610-52U3DM	5320×3032	52.0	1.1" IMX542 Global shutter CMOS	2.74μm	USB3.2	Mono
Resolution:5320×3032 Frame Rate (fps):52.0 Sensor:1.1" IMX542 Global shutter CMOS Pixel Size:2.74μm Data Interface:USB3.2 Spectrum:Mono
MER3-1610-52U3DC	5320×3032	52.0	1.1" IMX542 Global shutter CMOS	2.74μm	USB3.2	Color
Resolution:5320×3032 Frame Rate (fps):52.0 Sensor:1.1" IMX542 Global shutter CMOS Pixel Size:2.74μm Data Interface:USB3.2 Spectrum:Color
MER3-2020-42U3DM	4504×4504	42.0	1.1" IMX541 Global shutter CMOS	2.74μm	USB3.2	Mono
Resolution:4504×4504 Frame Rate (fps):42.0 Sensor:1.1" IMX541 Global shutter CMOS Pixel Size:2.74μm Data Interface:USB3.2 Spectrum:Mono
MER3-2020-42U3DC	4504×4504	42.0	1.1" IMX541 Global shutter CMOS	2.74μm	USB3.2	Color
Resolution:4504×4504 Frame Rate (fps):42.0 Sensor:1.1" IMX541 Global shutter CMOS Pixel Size:2.74μm Data Interface:USB3.2 Spectrum:Color
MER3-2440-34U3DM	5328×4608	34.7	1.2" IMX540 Global shutter CMOS	2.74μm	USB3.2	Color
Resolution:5328×4608 Frame Rate (fps):34.7 Sensor:1.2" IMX540 Global shutter CMOS Pixel Size:2.74μm Data Interface:USB3.2 Spectrum:Color
MER3-2440-34U3DC	5328×4608	34.7	1.2" IMX540 Global shutter CMOS	2.74μm	USB3.2	Color
Resolution:5328×4608 Frame Rate (fps):34.7 Sensor:1.2" IMX540 Global shutter CMOS Pixel Size:2.74μm Data Interface:USB3.2 Spectrum:Color
