VE2S-G Board Level Series

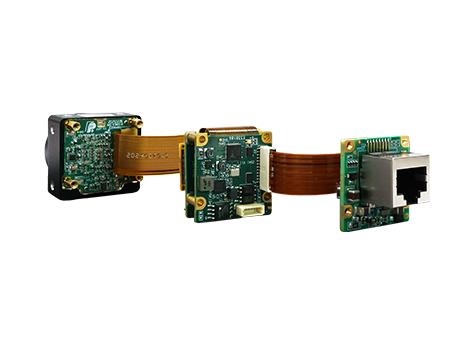

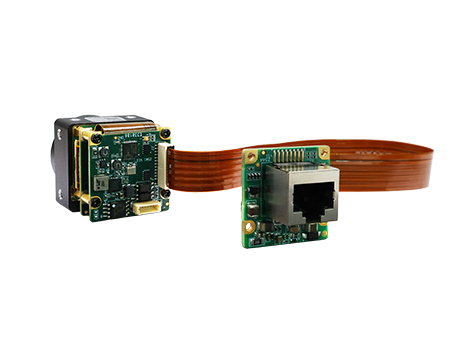

VE2S-G Series Camera uses design of "Camera body + FPC cable + GigE adapter board", which provides more flexibility for embedded visual applications, featuring outstanding performance, ease of installation and use.

VE2S-G Board Level Series

Get VE2S-G Board Level Series Manual 更多特性

1Gbit/s with Power over Etherent Cost-effective, streamlined cabling, reliable quality		Board-level Cameras Detachable design: Camera body + FPC cable + GigE adapter board
Compact, flexible for application More compact, highly expandable, and easy to install and use		Rich functions, higher image quality Support Ultrashort exposure, Gamma, Brust, etc, optimize image quality
Low power consumption The best combination of cost, performance and size		Easy software integration Compatibility to the HALCON, VisionPro, etc popular third party softwares

Model	Resolution	Frame Rate (fps)	Sensor	Pixel Size	Data Interface	Spectrum

VE2S-042-121GM-P	720×540	121.8	1/2.9" IMX297 Global shutter CMOS	6.9μm	GigE	Mono
Resolution:720×540 Frame Rate (fps):121.8 Sensor:1/2.9" IMX297 Global shutter CMOS Pixel Size:6.9μm Data Interface:GigE Spectrum:Mono
VE2S-042-121GC-P	720×540	121.8	1/2.9" IMX297 Global shutter CMOS	6.9μm	GigE	Color
Resolution:720×540 Frame Rate (fps):121.8 Sensor:1/2.9" IMX297 Global shutter CMOS Pixel Size:6.9μm Data Interface:GigE Spectrum:Color
VE2S-161-75GM-P	1440×1080	75.6	1/2.9" IMX296 Global shutter CMOS	3.45μm	GigE	Mono
Resolution:1440×1080 Frame Rate (fps):75.6 Sensor:1/2.9" IMX296 Global shutter CMOS Pixel Size:3.45μm Data Interface:GigE Spectrum:Mono
VE2S-161-75GC-P	1440×1080	75.6	1/2.9" IMX296 Global shutter CMOS	3.45μm	GigE	Color
Resolution:1440×1080 Frame Rate (fps):75.6 Sensor:1/2.9" IMX296 Global shutter CMOS Pixel Size:3.45μm Data Interface:GigE Spectrum:Color
VE2S-303-37GM-P	2048×1536	37.4	1/1.8" Global shutter CMOS	3.45μm	GigE	Mono
Resolution:2048×1536 Frame Rate (fps):37.4 Sensor:1/1.8" Global shutter CMOS Pixel Size:3.45μm Data Interface:GigE Spectrum:Mono
VE2S-303-37GC-P	2048×1536	37.4	1/1.8" Global shutter CMOS	3.45μm	GigE	Color
Resolution:2048×1536 Frame Rate (fps):37.4 Sensor:1/1.8" Global shutter CMOS Pixel Size:3.45μm Data Interface:GigE Spectrum:Color
VE2S-501-23GM-P	2448×2048	22.23	2/3" Global shutter CMOS	3.45μm	GigE	Color
Resolution:2448×2048 Frame Rate (fps):22.23 Sensor:2/3" Global shutter CMOS Pixel Size:3.45μm Data Interface:GigE Spectrum:Color
VE2S-501-23GC-P	2448×2048	22.23	2/3" Global shutter CMOS	3.45μm	GigE	Color
Resolution:2448×2048 Frame Rate (fps):22.23 Sensor:2/3" Global shutter CMOS Pixel Size:3.45μm Data Interface:GigE Spectrum:Color
VE2S-630-18GM-P	3088×2064	18.45	1/1.8" IMX178 Rolling shutter CMOS	2.4μm	GigE	Mono
Resolution:3088×2064 Frame Rate (fps):18.45 Sensor:1/1.8" IMX178 Rolling shutter CMOS Pixel Size:2.4μm Data Interface:GigE Spectrum:Mono
VE2S-630-18GC-P	3088×2064	18.45	1/1.8" IMX178 Rolling shutter CMOS	2.4μm	GigE	Color
Resolution:3088×2064 Frame Rate (fps):18.45 Sensor:1/1.8" IMX178 Rolling shutter CMOS Pixel Size:2.4μm Data Interface:GigE Spectrum:Color
