MER3-501-59G3C-P

The MER3-501-59G3C-P camera is a monochrome/color GigE Vision camera with the Sony global shutter CMOS sensor and high performance FPGA. The MER3-501-59G3C-P camera is capable of 2.5Gbit/s maximum transfer data rate, and has opto-isolated I/Os that adapt to specific needs. Four-side mounting holes provide maximum installation flexibility for camera. Thanks to the extremely compact (29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY3 cameras can secure the reliability of cameras deployed in harsh environments.

Features

Two exposure modes: Standard / UltraShort
Decimation, Gamma, Digital Shift and Black Level
Burst Acquisition

Timed exposure mode and TriggerWidth exposure mode
Support Light source preset, Color Transformation Control and Saturation
Timer, Counter, LUTs and User Set Control

Specifications

Model	MER3-501-59G3C-P
Product Families	MERCURY3
Resolution	2448×2048
Frame Rate (fps)	56.05
Sensor Manufacturer	Sony
Sensor	Global shutter CMOS
Pixel Size	3.45μm
Pixel Bit Depth	8 bit, 12 bit
Data Interface	2.5GigE
Lens Mount	C

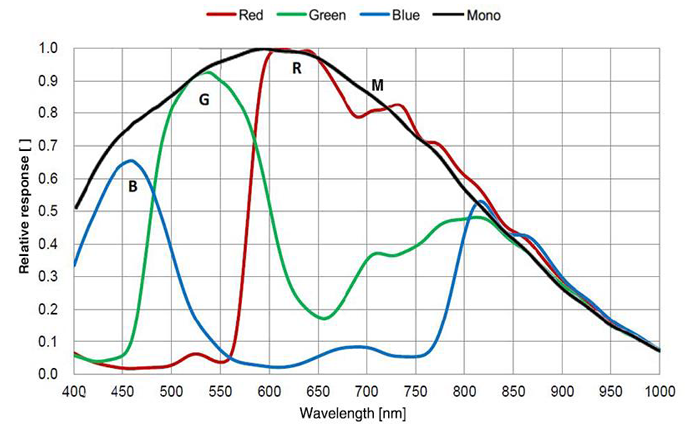

Spectrum	Color
Pixel Formats	Bayer RG8，Bayer RG12
Signal Noise Ratio	40.61 dB
Exposure Time	UltraShort: 1μs~100μs, Standard: 20μs ~ 1s
Gain	0dB ~ 24dB
Binning	1×1, 1×2, 1×4, 2×1, 2×2, 4×1, 4×4
Decimation	FPGA: 1×1, 1×2, 1×4, 2×1, 2×2, 4×1, 4×4
Reverse X/Y	Reverse X/Y
I/O Interface	1 input with opto-isolated, 2 programmable GPIOs
Power Requirement	12 ~ 24 VDC or PoE
Power Consumption	< 5.1 W @ 12V / PoE
Operating Temp.	0°C ~ +50°C
Storage Temp.	-20°C ~ +70°C
Operating Humidity	10% ~ 80%
Dimensions (W×H×L)	29 mm × 29 mm × 50.6 mm (w/o connectors)
Weight	67 g
Conformity	CE, RoHS, FCC, ICES, UKCA, GigE Vision, GenICam
