MER2-G Series

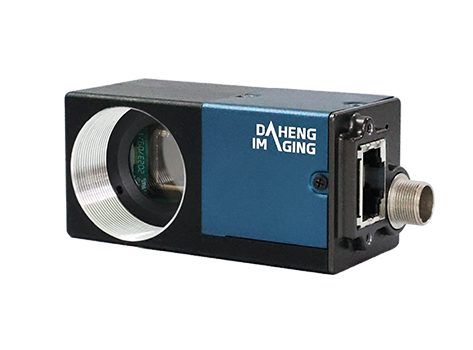

The MERCURY2 GigE series (MER2-G) camera is DAHENG IMAGING's new generation industrial digital camera. With improved built-in ISP algorithms, MER2-G series camera supports more features. Providing multiple acquisition controls, the camera can adapt to various vision applications. The MERCURY2 family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education and so on.

MER2-G Series

Get MER2-G Series Manual 更多特性


✔ Compact and light	✔ GigE interface	✔ Global / Rolling shutter	✔ Resolutions & frame rates	✔ C / CS-mount
29×29mm ultra-small size	High bandwidth	Excellent image	0.4~20Mpixel, 5~300fps	Compatible with most lenses

Model	Resolution	Frame Rate (fps)	Sensor	Pixel Size	Data Interface	Spectrum

HOT MER2-507-23GM NIR	2592×1944	23.3	1/2.5" AR0522 Rolling shutter CMOS	2.2μm	GigE	Mono/NIR
Resolution:2592×1944 Frame Rate (fps):23.3 Sensor:1/2.5" AR0522 Rolling shutter CMOS Pixel Size:2.2μm Data Interface:GigE Spectrum:Mono/NIR
HOT MER2-507-23GC	2592×1944	23.3	1/2.5" AR0521 Rolling shutter CMOS	2.2μm	GigE	Color
Resolution:2592×1944 Frame Rate (fps):23.3 Sensor:1/2.5" AR0521 Rolling shutter CMOS Pixel Size:2.2μm Data Interface:GigE Spectrum:Color
HOT MER2-507-23GM	2592×1944	23.3	1/2.5" AR0521 Rolling shutter CMOS	2.2μm	GigE	Mono
Resolution:2592×1944 Frame Rate (fps):23.3 Sensor:1/2.5" AR0521 Rolling shutter CMOS Pixel Size:2.2μm Data Interface:GigE Spectrum:Mono
MER2-630-18GC-W90-S90	3088×2064	18.45	1/1.8" IMX178 Rolling shutter CMOS	2.4μm	GigE	Color
Resolution:3088×2064 Frame Rate (fps):18.45 Sensor:1/1.8" IMX178 Rolling shutter CMOS Pixel Size:2.4μm Data Interface:GigE Spectrum:Color
MER2-630-18GM-W90-S90	3088×2064	18.45	1/1.8" IMX178 Rolling shutter CMOS	2.4μm	GigE	Mono
Resolution:3088×2064 Frame Rate (fps):18.45 Sensor:1/1.8" IMX178 Rolling shutter CMOS Pixel Size:2.4μm Data Interface:GigE Spectrum:Mono
MER2-041-302GC	720×540	302.3	1/2.9" IMX287 Global shutter CMOS	6.9μm	GigE	Color
Resolution:720×540 Frame Rate (fps):302.3 Sensor:1/2.9" IMX287 Global shutter CMOS Pixel Size:6.9μm Data Interface:GigE Spectrum:Color
MER2-041-302GM	720×540	302.3	1/2.9" IMX287 Global shutter CMOS	6.9μm	GigE	Mono
Resolution:720×540 Frame Rate (fps):302.3 Sensor:1/2.9" IMX287 Global shutter CMOS Pixel Size:6.9μm Data Interface:GigE Spectrum:Mono
MER2-051-120GM	808×608	120	1/3.6" PYTHON480 Global shutter CMOS	4.8μm	GigE	Mono
Resolution:808×608 Frame Rate (fps):120 Sensor:1/3.6" PYTHON480 Global shutter CMOS Pixel Size:4.8μm Data Interface:GigE Spectrum:Mono
MER2-051-120GC	808×608	120	1/3.6" PYTHON 480 Global shutter CMOS	4.8μm	GigE	Color
Resolution:808×608 Frame Rate (fps):120 Sensor:1/3.6" PYTHON 480 Global shutter CMOS Pixel Size:4.8μm Data Interface:GigE Spectrum:Color
MER2-134-90GM	1280×1024	90	1/2" PYTHON1300 Global shutter CMOS	4.8μm	GigE	Mono
Resolution:1280×1024 Frame Rate (fps):90 Sensor:1/2" PYTHON1300 Global shutter CMOS Pixel Size:4.8μm Data Interface:GigE Spectrum:Mono
MER2-134-90GC	1280×1024	90	1/2" PYTHON1300 Global shutter CMOS	4.8μm	GigE	Color
Resolution:1280×1024 Frame Rate (fps):90 Sensor:1/2" PYTHON1300 Global shutter CMOS Pixel Size:4.8μm Data Interface:GigE Spectrum:Color
MER2-160-75GC	1440×1080	75.6	1/2.9" IMX273 Global shutter CMOS	3.45μm	GigE	Color
Resolution:1440×1080 Frame Rate (fps):75.6 Sensor:1/2.9" IMX273 Global shutter CMOS Pixel Size:3.45μm Data Interface:GigE Spectrum:Color
MER2-160-75GM	1440×1080	75.6	1/2.9" IMX273 Global shutter CMOS	3.45μm	GigE	Mono
Resolution:1440×1080 Frame Rate (fps):75.6 Sensor:1/2.9" IMX273 Global shutter CMOS Pixel Size:3.45μm Data Interface:GigE Spectrum:Mono
MER2-202-60GC	1600×1200	60	1/1.8" EV76C570 Global shutter CMOS	4.5μm	GigE	Color
Resolution:1600×1200 Frame Rate (fps):60 Sensor:1/1.8" EV76C570 Global shutter CMOS Pixel Size:4.5μm Data Interface:GigE Spectrum:Color
MER2-202-60GM	1600×1200	60	1/1.8" EV76C570 Global shutter CMOS	4.5μm	GigE	Mono
Resolution:1600×1200 Frame Rate (fps):60 Sensor:1/1.8" EV76C570 Global shutter CMOS Pixel Size:4.5μm Data Interface:GigE Spectrum:Mono
MER2-231-41GC	1920×1200	41	1/1.2" IMX249 Global shutter CMOS	5.86μm	GigE	Color
Resolution:1920×1200 Frame Rate (fps):41 Sensor:1/1.2" IMX249 Global shutter CMOS Pixel Size:5.86μm Data Interface:GigE Spectrum:Color
MER2-231-41GM	1920×1200	41	1/1.2" IMX249 Global shutter CMOS	5.86μm	GigE	Mono
Resolution:1920×1200 Frame Rate (fps):41 Sensor:1/1.2" IMX249 Global shutter CMOS Pixel Size:5.86μm Data Interface:GigE Spectrum:Mono
MER2-302-37GC	2048×1536	37.4	1/1.8" IMX265 Global shutter CMOS	3.45μm	GigE	Color
Resolution:2048×1536 Frame Rate (fps):37.4 Sensor:1/1.8" IMX265 Global shutter CMOS Pixel Size:3.45μm Data Interface:GigE Spectrum:Color
MER2-302-37GM	2048×1536	37.4	1/1.8" IMX265 Global shutter CMOS	3.45μm	GigE	Mono
Resolution:2048×1536 Frame Rate (fps):37.4 Sensor:1/1.8" IMX265 Global shutter CMOS Pixel Size:3.45μm Data Interface:GigE Spectrum:Mono
MER2-503-23GC	2448×2048	23.5	2/3" IMX264 Global shutter CMOS	3.45μm	GigE	Color
Resolution:2448×2048 Frame Rate (fps):23.5 Sensor:2/3" IMX264 Global shutter CMOS Pixel Size:3.45μm Data Interface:GigE Spectrum:Color
MER2-503-23GM	2448×2048	23.5	2/3" IMX264 Global shutter CMOS	3.45μm	GigE	Mono
Resolution:2448×2048 Frame Rate (fps):23.5 Sensor:2/3" IMX264 Global shutter CMOS Pixel Size:3.45μm Data Interface:GigE Spectrum:Mono
MER2-630-18GC	3088×2064	18.45	1/1.8" IMX178 Rolling shutter CMOS	2.4μm	GigE	Color
Resolution:3088×2064 Frame Rate (fps):18.45 Sensor:1/1.8" IMX178 Rolling shutter CMOS Pixel Size:2.4μm Data Interface:GigE Spectrum:Color
MER2-630-18GM	3088×2064	18.45	1/1.8" IMX178 Rolling shutter CMOS	2.4μm	GigE	Mono
Resolution:3088×2064 Frame Rate (fps):18.45 Sensor:1/1.8" IMX178 Rolling shutter CMOS Pixel Size:2.4μm Data Interface:GigE Spectrum:Mono
MER2-1070-10GM	3840×2748	10	1/2.3" MT9J003 Rolling shutter CMOS	1.67μm	GigE	Mono
Resolution:3840×2748 Frame Rate (fps):10 Sensor:1/2.3" MT9J003 Rolling shutter CMOS Pixel Size:1.67μm Data Interface:GigE Spectrum:Mono
MER2-1220-9GC	4024×3036	9.63	1/1.7" IMX226 Rolling shutter CMOS	1.85μm	GigE	Color
Resolution:4024×3036 Frame Rate (fps):9.63 Sensor:1/1.7" IMX226 Rolling shutter CMOS Pixel Size:1.85μm Data Interface:GigE Spectrum:Color
MER2-1220-9GM	4024×3036	9.63	1/1.7" IMX226 Rolling shutter CMOS	1.85μm	GigE	Mono
Resolution:4024×3036 Frame Rate (fps):9.63 Sensor:1/1.7" IMX226 Rolling shutter CMOS Pixel Size:1.85μm Data Interface:GigE Spectrum:Mono
MER2-2000-6GC	5496×3672	5.8	1" IMX183 Rolling shutter CMOS	2.4μm	GigE	Color
Resolution:5496×3672 Frame Rate (fps):5.8 Sensor:1" IMX183 Rolling shutter CMOS Pixel Size:2.4μm Data Interface:GigE Spectrum:Color
MER2-2000-6GM	5496×3672	5.8	1" IMX183 Rolling shutter CMOS	2.4μm	GigE	Mono
Resolution:5496×3672 Frame Rate (fps):5.8 Sensor:1" IMX183 Rolling shutter CMOS Pixel Size:2.4μm Data Interface:GigE Spectrum:Mono
