ME2P-G-P Series

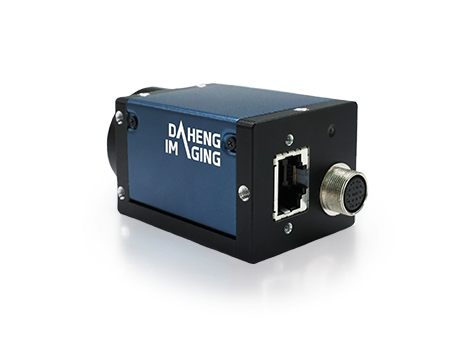

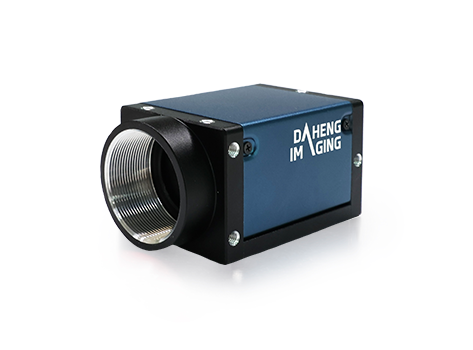

The MERCURY2 PRO PoE series (ME2P-G-P) camera is DAHENG IMAGING's new industrial digital camera with fourside mounting holes, featuring outstanding performance, compact design and flexible installation.  ME2P-G-P has opto-isolated I/Os that adapt to specific needs and is Powered Over Ethernet. Four-side mounting holes provide maximum installation fexibility for ME2P-G-P. As new models, Tilt-Shift Camera has been adopted unique design of Scheimpflug angle adjusting mechanism, and the horizontal or vertical angle between lens and sensor plane can be adjusted from 0 to 8 degree to increase the depth of field.

ME2P-G-P Series

The MERCURY2 PRO PoE series (ME2P-G-P) camera is DAHENG IMAGING's new industrial digital camera with fourside mounting holes, featuring outstanding performance, compact design and flexible installation.  ME2P-G-P has opto-isolated I/Os that adapt to specific needs and is Powered Over Ethernet. Four-side mounting holes provide maximum installation fexibility for ME2P-G-P. As new models, Tilt-Shift Camera has been adopted unique design of Scheimpflug angle adjusting mechanism, and the horizontal or vertical angle between lens and sensor plane can be adjusted from 0 to 8 degree to increase the depth of field.

More

Get ME2P-G-P Series Manual 更多特性

Model Resolution Frame Rate (fps) Sensor Pixel Size Data Interface Spectrum Operation

NEWME2P-900-13GM-P-HF8 4200×2160 13 2/3" GMAX2509 Global shutter CMOS 2.5μm GigE Mono
NEWME2P-1840-6GM-P-HF8 4508×4096 6.4 1" GMAX2518 Global shutter CMOS 2.5μm GigE Mono
NEWME2P-2621-4GM-P-HF8 5120×5120 4.5 1.1" GMAX0505 Global shutter CMOS 2.5μm GigE Mono
ME2P-560-21GC-P 2600×2160 21 1/2" GMAX2505 Global shutter CMOS 2.5μm GigE Color
ME2P-560-21GM-P 2600×2160 21 1/2" GMAX2505 Global shutter CMOS 2.5μm GigE Mono
ME2P-900-13GC-P 4200×2160 13 2/3" GMAX2509 Global shutter CMOS 2.5μm GigE Color
ME2P-900-13GM-P 4200×2160 13 2/3" GMAX2509 Global shutter CMOS 2.5μm GigE Mono
ME2P-1230-9GC-P 4096×3000 9 1.1" IMX304 Global shutter CMOS 3.45μm GigE Color
ME2P-1230-9GM-P 4096×3000 9 1.1" IMX304 Global shutter CMOS 3.45μm GigE Mono
ME2P-1840-6GC-P 4508×4096 6.4 1" GMAX2518 Global shutter CMOS 2.5μm GigE Color
ME2P-1840-6GM-P 4508×4096 6.4 1" GMAX2518 Global shutter CMOS 2.5μm GigE Mono
ME2P-2621-4GM-P NIR 5120×5120 4.5 1.1" GMAX0505 Global shutter CMOS 2.5μm GigE Mono/NIR
ME2P-2621-4GM-P 5120×5120 4.5 1.1" GMAX0505 Global shutter CMOS 2.5μm GigE Mono
ME2P-2621-4GC-P 5120×5120 4.5 1.1" GMAX0505 Global shutter CMOS 2.5μm GigE Color
ME2P-2622-4GM-P NIR 5120×5120 4.5 1.1" GMAX0505 Global shutter CMOS 2.5μm GigE Mono/NIR
ME2P-900-13GM-P-VF8 4200×2160 13 2/3" GMAX2509 Global shutter CMOS 2.5μm GigE Mono
ME2P-900-13GC-P-VF8 4200×2160 13 2/3" GMAX2509 Global shutter CMOS 2.5μm GigE Color
ME2P-900-13GC-P-HF8 4200×2160 13 2/3" GMAX2509 Global shutter CMOS 2.5μm GigE Color
ME2P-1230-9GM-P-VF8 4096×3000 9 1.1" IMX304 Global shutter CMOS 3.45μm GigE Mono
ME2P-1230-9GC-P-VF8 4096×3000 9 1.1" IMX304 Global shutter CMOS 3.45μm GigE Color
ME2P-1230-9GC-P-HF8 4096×3000 9 1.1" IMX304 Global shutter CMOS 3.45μm GigE Color
ME2P-1230-9GM-P-HF8 4096×3000 9 1.1" IMX304 Global shutter CMOS 3.45μm GigE Mono
ME2P-1840-6GM-P-VF8 4508×4096 6.4 1" GMAX2518 Global shutter CMOS 2.5μm GigE Mono
ME2P-1840-6GC-P-VF8 4508×4096 6.4 1" GMAX2518 Global shutter CMOS 2.5μm GigE Color
ME2P-1840-6GC-P-HF8 4508×4096 6.4 1" GMAX2518 Global shutter CMOS 2.5μm GigE Color
ME2P-2621-4GM-P-VF8 5120×5120 4.5 1.1" GMAX0505 Global shutter CMOS 2.5μm GigE Mono
ME2P-2621-4GC-P-VF8 5120×5120 4.5 1.1" GMAX0505 Global shutter CMOS 2.5μm GigE Color
ME2P-2621-4GC-P-HF8 5120×5120 4.5 1.1" GMAX0505 Global shutter CMOS 2.5μm GigE Color

Comparison
