High-Speed, Stable
CoaXPress 2.0 interface, 12.5Gbps per channel

Lower pixel noise, superior imaging
Static Defect Pixel Correction, freely added or deleted defect pixels coordinates

Compact, Light
29×29mm ultra-small size

Rich functions, better image quality
Support Sequencer, Brust, Gamma, etc, optimize image quality

Low power consumption, more speed
The best combination of performance and size

Applications
SMT inspection, PCB inspection , etc, semiconductor and consumer electronics fields

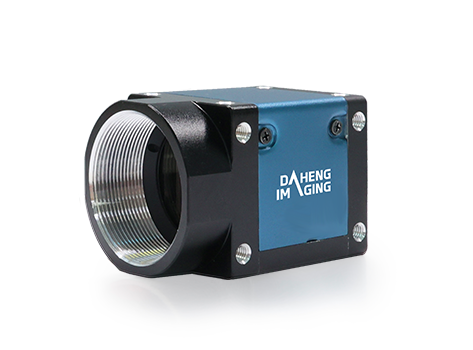

MER3-X2 Series

DAHENG IMAGING MERCURY3 CoaXPress2.0 series camera featuring high quality images, extremely low power, small housing, and stable operating capability. The camera is capable of 12.5Gbit/s maximum transfer data rate, support PoCXP and can secure the reliability of cameras deployed in harsh industrial environments. The cameras are industrial cameras with high reliability, high transmission speed and high image quality.

MER3-X2 Series

Get MER3-X2 Series Manual 更多特性

★ Better performance with POLS-CXP ★

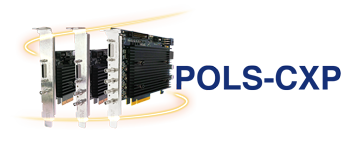

MER3 CXP2.0 series cameras get better performance with POLS-CXP frame grabber. Based on the PCIe Gen3 interface bus and CoaXPress 2.0 protocol, the POLS-CXP supports up to 4 channels of HD-BNC connection at the same time, with continuously stable bandwidth of 6700MB/s. High performance and high reliability.

Model	Resolution	Frame Rate (fps)	Sensor	Pixel Size	Data Interface	Spectrum

MER3-321-176X2M-SWIR F02	2080×1544	176.30	1/1.8" IMX993 Global shutter CMOS	3.45μm	CoaXPress	Mono
Resolution:2080×1544 Frame Rate (fps):176.30 Sensor:1/1.8" IMX993 Global shutter CMOS Pixel Size:3.45μm Data Interface:CoaXPress Spectrum:Mono
MER3-321-224X2M-SWIR F02	2080×1544	224.42	1/1.8" IMX993 Global shutter CMOS	3.45μm	CoaXPress	Mono
Resolution:2080×1544 Frame Rate (fps):224.42 Sensor:1/1.8" IMX993 Global shutter CMOS Pixel Size:3.45μm Data Interface:CoaXPress Spectrum:Mono
MER3-514-235X2M	2448×2048	235.5	10.7mm Customize Global shutter CMOS	3.4μm	CoaXPress	Mono
Resolution:2448×2048 Frame Rate (fps):235.5 Sensor:10.7mm Customize Global shutter CMOS Pixel Size:3.4μm Data Interface:CoaXPress Spectrum:Mono
MER3-514-235X2C	2448×2048	235.5	10.7mm Customize Global shutter CMOS	3.4μm	CoaXPress	Color
Resolution:2448×2048 Frame Rate (fps):235.5 Sensor:10.7mm Customize Global shutter CMOS Pixel Size:3.4μm Data Interface:CoaXPress Spectrum:Color
MER3-515-131X2M	2448×2048	130.9	1/1.8" IMX548 Global shutter CMOS	2.74μm	CoaXPress	Mono
Resolution:2448×2048 Frame Rate (fps):130.9 Sensor:1/1.8" IMX548 Global shutter CMOS Pixel Size:2.74μm Data Interface:CoaXPress Spectrum:Mono
MER3-515-131X2C	2448×2048	130.9	1/1.8" IMX548 Global shutter CMOS	2.74μm	CoaXPress	Color
Resolution:2448×2048 Frame Rate (fps):130.9 Sensor:1/1.8" IMX548 Global shutter CMOS Pixel Size:2.74μm Data Interface:CoaXPress Spectrum:Color
MER3-533-134X2M-SWIR F02	2592×2056	134.12	1/1.4" IMX992 Global shutter CMOS	3.45μm	CoaXPress	Mono
Resolution:2592×2056 Frame Rate (fps):134.12 Sensor:1/1.4" IMX992 Global shutter CMOS Pixel Size:3.45μm Data Interface:CoaXPress Spectrum:Mono
MER3-533-170X2M-SWIR F02	2592×2056	170.71	1/1.4" IMX992 Global shutter CMOS	3.45μm	CoaXPress	Mono
Resolution:2592×2056 Frame Rate (fps):170.71 Sensor:1/1.4" IMX992 Global shutter CMOS Pixel Size:3.45μm Data Interface:CoaXPress Spectrum:Mono
MER3-800-86X2M	2840×2840	86.76	2/3" IMX546 Global shutter CMOS	2.74μm	CoaXPress	Mono
Resolution:2840×2840 Frame Rate (fps):86.76 Sensor:2/3" IMX546 Global shutter CMOS Pixel Size:2.74μm Data Interface:CoaXPress Spectrum:Mono
MER3-800-86X2C	2840×2840	86.76	2/3" IMX546 Global shutter CMOS	2.74μm	CoaXPress	Color
Resolution:2840×2840 Frame Rate (fps):86.76 Sensor:2/3" IMX546 Global shutter CMOS Pixel Size:2.74μm Data Interface:CoaXPress Spectrum:Color
MER3-1221-68X2M	4096×3000	68.24	1/1.1" IMX545 Global shutter CMOS	2.74μm	CoaXPress	Mono
Resolution:4096×3000 Frame Rate (fps):68.24 Sensor:1/1.1" IMX545 Global shutter CMOS Pixel Size:2.74μm Data Interface:CoaXPress Spectrum:Mono
MER3-1221-68X2C	4096×3000	68.24	1/1.1" IMX545 Global shutter CMOS	2.74μm	CoaXPress	Color
Resolution:4096×3000 Frame Rate (fps):68.24 Sensor:1/1.1" IMX545 Global shutter CMOS Pixel Size:2.74μm Data Interface:CoaXPress Spectrum:Color
MER3-1250-94X2M	4096×3072	94.1	1.1" GMAX3412 Global shutter CMOS	3.4μm	CoaXPress	Mono
Resolution:4096×3072 Frame Rate (fps):94.1 Sensor:1.1" GMAX3412 Global shutter CMOS Pixel Size:3.4μm Data Interface:CoaXPress Spectrum:Mono
MER3-1250-94X2C	4096×3072	94.1	1.1" GMAX3412 Global shutter CMOS	3.4μm	CoaXPress	Color
Resolution:4096×3072 Frame Rate (fps):94.1 Sensor:1.1" GMAX3412 Global shutter CMOS Pixel Size:3.4μm Data Interface:CoaXPress Spectrum:Color
MER3-1610-52X2M	5320×3032	52.58	1.1" IMX542 Global shutter CMOS	2.74μm	CoaXPress	Mono
Resolution:5320×3032 Frame Rate (fps):52.58 Sensor:1.1" IMX542 Global shutter CMOS Pixel Size:2.74μm Data Interface:CoaXPress Spectrum:Mono
MER3-1610-52X2C	5320×3032	52.58	1.1" IMX542 Global shutter CMOS	2.74μm	CoaXPress	Color
Resolution:5320×3032 Frame Rate (fps):52.58 Sensor:1.1" IMX542 Global shutter CMOS Pixel Size:2.74μm Data Interface:CoaXPress Spectrum:Color
MER3-2020-42X2M	4504×4504	42.74	1.1" IMX541 Global shutter CMOS	2.74μm	CoaXPress	Mono
Resolution:4504×4504 Frame Rate (fps):42.74 Sensor:1.1" IMX541 Global shutter CMOS Pixel Size:2.74μm Data Interface:CoaXPress Spectrum:Mono
MER3-2020-42X2C	4504×4504	42.74	1.1" IMX541 Global shutter CMOS	2.74μm	CoaXPress	Color
Resolution:4504×4504 Frame Rate (fps):42.74 Sensor:1.1" IMX541 Global shutter CMOS Pixel Size:2.74μm Data Interface:CoaXPress Spectrum:Color
MER3-2440-35X2M	5320×4600	35.10	1.2" IMX540 Global shutter CMOS	2.74μm	CoaXPress	Mono
Resolution:5320×4600 Frame Rate (fps):35.10 Sensor:1.2" IMX540 Global shutter CMOS Pixel Size:2.74μm Data Interface:CoaXPress Spectrum:Mono
MER3-2440-35X2C	5320×4600	35.10	1.2" IMX540 Global shutter CMOS	2.74μm	CoaXPress	Color
Resolution:5320×4600 Frame Rate (fps):35.10 Sensor:1.2" IMX540 Global shutter CMOS Pixel Size:2.74μm Data Interface:CoaXPress Spectrum:Color
