High-Speed, Stable
PCIe Gen3 bus, up to 6700MB/s continuously stable bandwidth

Rich I/Os
20 I/O pins for accessing onboard I/O control signals, Encoder control, Timer

Up to 4 cameras
1, 2 or 4 CXP-12 HD-BNC port configuration, 12.5Gbps per channel

High perforamnce image pre-processing functions
Convert Bayer to RGB, RedBlueSwap, ReverseY, etc.

Power over CoaXPress, Flexible connection
Frame grabber and the camera can disordered connection

Applications
Industrial inspection, medical, scientific research, education,security, etc.

CoaXPress Frame Grabber

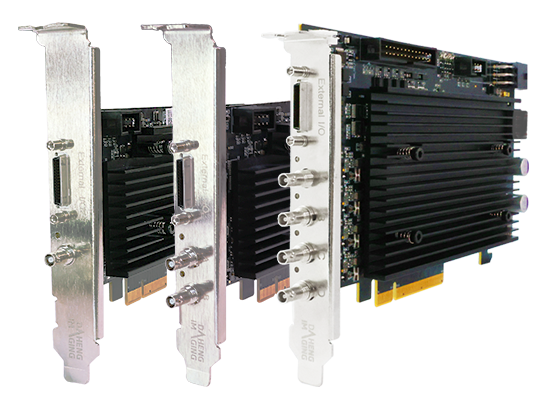

The POLARIS Frame Grabber is a brand new product independently developed by DAHENG IMAGING, with CoaXPress interface. Based on the PCIe Gen3 bus and CoaXPress 2.0 protocol, CoaXPress frame grabber can achieve high speed image acquisition and data transmission. It supports up to 4 channels of HD-BNC connection at the same time, acquiring images at a speed of 12.5Gbps per channel.

CoaXPress Frame Grabber

Get CoaXPress Frame Grabber Manual 更多特性

Model	Interface	Connectors	Memory	Bus	Supported Cameras

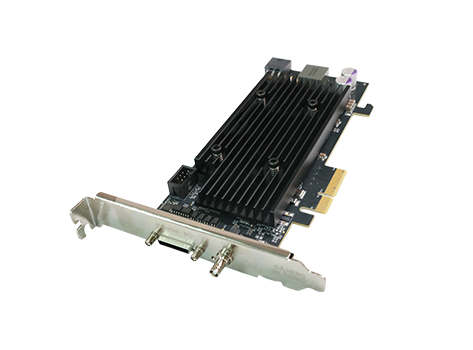

POLS-C12-1T-G34	CoaXPress	HD-BNC	1GB DDR4 SDRAM	PCIe Gen3 × 4	1
Interface:CoaXPress Connectors:HD-BNC Memory:1GB DDR4 SDRAM Bus:PCIe Gen3 × 4 Supported Cameras:1

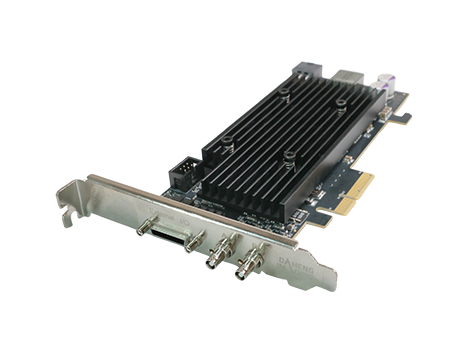

POLS-C12-2T-G34	CoaXPress	HD-BNC	2GB DDR4 SDRAM	PCIe Gen3 × 4	2
Interface:CoaXPress Connectors:HD-BNC Memory:2GB DDR4 SDRAM Bus:PCIe Gen3 × 4 Supported Cameras:2

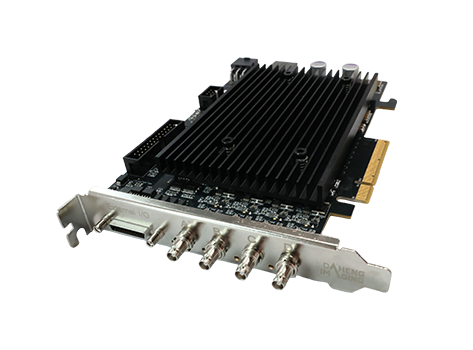

POLS-C12-4T-G38	CoaXPress	HD-BNC	4GB DDR4 SDRAM	PCIe Gen3 × 8	4
Interface:CoaXPress Connectors:HD-BNC Memory:4GB DDR4 SDRAM Bus:PCIe Gen3 × 8 Supported Cameras:4
