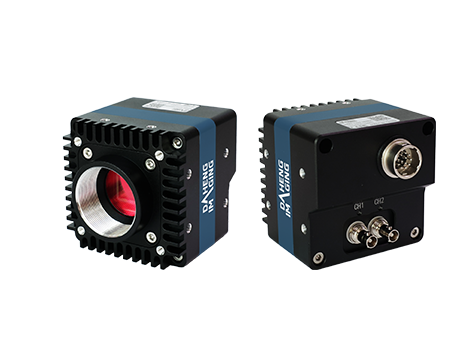

MARS-X2 Series

The MARS CoaXPress camera is DAHENG IMAGING's latest industrial digital camera, featuring high quality images, low power, high transmission speed, stable operating capability, and rapid cooling characteristics. The cameras are available in a variety of resolutions and frame rates, and are available with multiple cooling options: Thermoelectric Cooling (TEC) with a fan, fan and passive cooling. These cameras are especially suitable for machine vision applications such as FPD, PCB, and consumer electronics inspections.

MARS-X2 Series

The MARS CoaXPress camera is DAHENG IMAGING's latest industrial digital camera, featuring high quality images, low power, high transmission speed, stable operating capability, and rapid cooling characteristics. The cameras are available in a variety of resolutions and frame rates, and are available with multiple cooling options: Thermoelectric Cooling (TEC) with a fan, fan and passive cooling. These cameras are especially suitable for machine vision applications such as FPD, PCB, and consumer electronics inspections.

More

Get MARS-X2 Series Manual 更多特性

 High-Speed, Stable

CoaXPress 2.0 interface, 12.5Gbps per channel


  Available with multiple cooling options

Thermoelectric Cooling (TEC) with a fan, fan and passive cooling



  Lower hot pixel noise, superior imaging

Thermoelectric Cooling, 15°C±0.5°C below ambient temp


  Rich functions, better image quality

Support Sequencer, Brust, Gamma, etc, optimize image quality




 Low power consumption, more speed

The best combination of performance and size


  Applications

LED inspection, PCB inspection , etc, semiconductor and consumer electronics fields












★  Better performance with POLS-CXP  ★

Read More





MARS-CXP series cameras get better performance with POLS-CXP frame grabber. Based on the PCIe Gen3 interface bus and CoaXPress 2.0 protocol, the POLS-CXP supports up to 4 channels of HD-BNC connection at the same time, with continuously stable bandwidth of 6700MB/s. High performance and high reliability.




Model Resolution Frame Rate (fps) Sensor Pixel Size Data Interface Spectrum Operation

MARS-251-1938X2M-NF 2048×1216 1937.98 10.7mm GSPRINT4502 2MP Global shutter CMOS 4.5μm CoaXPress Mono
MARS-251-1938X2C-NF 2048×1216 1937.98 10.7mm GSPRINT4502 2MP Global shutter CMOS 4.5μm CoaXPress Color
MARS-321-176X2M-TN-SWIR F02 2080×1544 176 1/1.8" Sony IMX993 Global shutter CMOS 3.45μm CoaXPress Mono/SWIR
MARS-513-940X2M-NF 2560×2016 940 29.5mm Customize Global shutter CMOS 9μm CoaXPress Mono
MARS-513-940X2C-NF 2560×2016 940 29.5mm Customize Global shutter CMOS 9μm CoaXPress Color
MARS-533-134X2M-TN-SWIR F02 2592×2056 134 1/1.4" Sony IMX992 Global shutter CMOS 3.45μm CoaXPress Mono/SWIR
MARS-533-170X2M-TN-SWIR F02 2592×2056 170 1/1.4" Sony IMX992 Global shutter CMOS 3.45μm CoaXPress Mono/SWIR
MARS-801-190X2C 2848×2848 190 2/3" Sony IMX536 Global shutter CMOS 2.74μm CoaXPress Color
MARS-801-190X2M 2848×2848 190 2/3" Sony IMX536 Global shutter CMOS 2.74μm CoaXPress Mono
MARS-810-190X2M-UV F02 2848×2848 190 2/3" Sony IMX487 Global shutter CMOS 2.74μm CoaXPress Mono/UV
MARS-1222-178X2C 4128×3008 178 1/1.1" Sony IMX535 Global shutter CMOS 2.74μm CoaXPress Color
MARS-1222-178X2M 4128×3008 178 1/1.1" Sony IMX535 Global shutter CMOS 2.74μm CoaXPress Mono
MARS-1410-342X2C-NF 4608×3072 342.5 25.34 mm × 16.90 mm Gpixel GSPRINT5514 BSI 14MP Global shutter CMOS 5.5μm CoaXPress Color
MARS-1410-342X2M-NF 4608×3072 342.5 25.34 mm × 16.90 mm Gpixel GSPRINT5514 BSI 14MP Global shutter CMOS 5.5μm CoaXPress Mono
MARS-2100-230X2M-NF 5120×4096 227.7 29.5mm GSPRINT4521 21MP Global shutter CMOS 4.5μm CoaXPress Mono
MARS-2100-230X2C-NF 5120×4096 226.91 29.5mm GSPRINT4521 21MP Global shutter CMOS 4.5μm CoaXPress Color
MARS-2625-150X2M-NF 5120×5120 150.1 12.8mm × 12.8mm GMAX0505 Global shutter CMOS 2.5μm CoaXPress Mono
MARS-2625-150X2C-NF 5120×5120 150.1 12.8mm × 12.8mm GMAX0505 Global shutter CMOS 2.5μm CoaXPress Color
MARS-6500-31X2M-NF 9344×7000 31.6 29.9mm × 22.4mm GMAX3265 Global shutter CMOS 3.2μm CoaXPress Mono
MARS-6500-31X2C-NF 9344×7000 31.6 29.9mm × 22.4mm GMAX3265 Global shutter CMOS 3.2μm CoaXPress Color
MARS-6500-31X2M-TF 9344×7000 31.6 29.9mm × 22.4mm GMAX3265 Global shutter CMOS 3.2μm CoaXPress Mono
MARS-6500-31X2C-TF 9344×7000 31.6 29.9mm × 22.4mm GMAX3265 Global shutter CMOS 3.2μm CoaXPress Color
MARS-6502-71X2M-NF 9344×7000 71.1 29.9mm × 22.4mm GMAX3265 Global shutter CMOS 3.2μm CoaXPress Mono
MARS-6502-71X2C-NF 9344×7000 71.1 29.9mm × 22.4mm GMAX3265 Global shutter CMOS 3.2μm CoaXPress Color
MARS-10300-24X2M-TF 11264×9200 24 36.1mm × 29.4mm GMAX32103 Global shutter CMOS 3.2μm CoaXPress Mono
MARS-10300-24X2C-TF 11264×9200 24 36.1mm × 29.4mm GMAX32103 Global shutter CMOS 3.2μm CoaXPress Color
MARS-15200-16X2M-TF 16544×9200 16.3 53.0mm × 29.4mm GMAX32152 Global shutter CMOS 3.2μm CoaXPress Mono
MARS-15200-16X2C-TF 16544×9200 16.3 53.0mm × 29.4mm GMAX32152 Global shutter CMOS 3.2μm CoaXPress Color
MARS-24600-12X2M-TF 19200×12800 10.54 64.84mm IMX811 245.76MP Rolling shutter CMOS 2.81μm CoaXPress Mono
MARS-24600-12X2C-TF 19200×12800 10.54 64.84mm IMX811 245.76MP Rolling shutter CMOS 2.81μm CoaXPress Color
