High-Speed, Stable
10GigE interface, 10Gbps per channel

Available with multiple cooling options

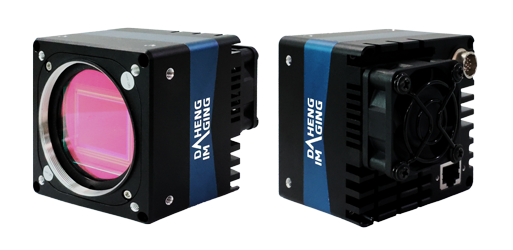

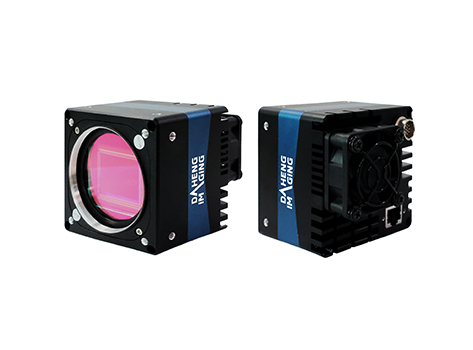

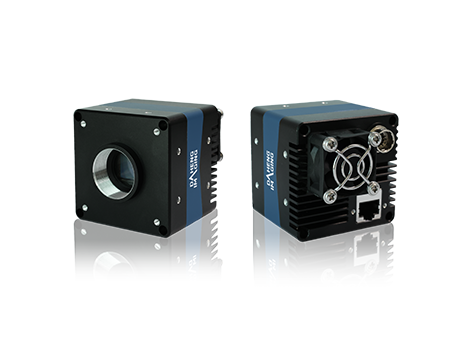

Thermoelectric Cooling (TEC) with a fan, fan and passive cooling

Lower hot pixel noise, superior imaging
Thermoelectric Cooling, 15°C±0.5°C below ambient temp

Rich functions, better image quality
Support Sequencer, Brust, Gamma, etc, optimize image quality

Robust, high reliability
Robust metal housings and locking screw connectors

Applications
Screen inspection, PCB inspection , etc, semiconductor and consumer electronics fields

MARS-GT Series

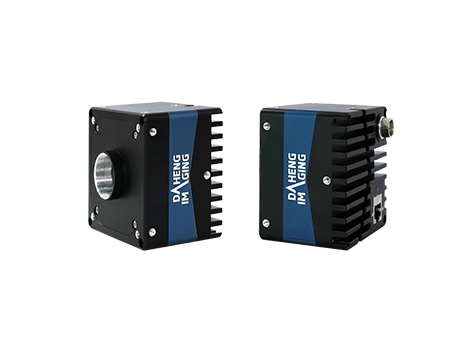

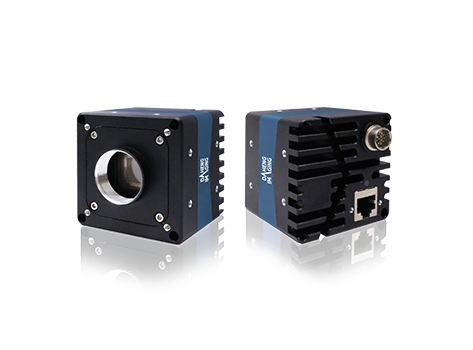

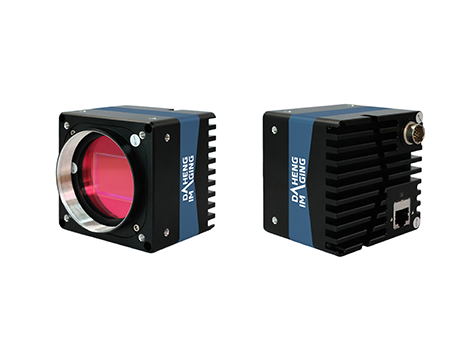

The MARS 10GigE series (MARS-GT) camera is DAHENG IMAGING's high bandwidth industrial digital camera, featuring high resolution, high definition and low noise. The MARS GT camera is capable of 10Gbit/s maximum transfer data rate, and has opto-isolated I/Os. Thanks to locking screw connectors, the MARS cameras can secure the reliability of cameras deployed in harsh environments. The MARS cameras are industrial digital cameras with high reliability and high price/performance ratio.

MARS-GT Series

Get MARS-GT Series Manual 更多特性

★ Better performance with POLS-GEV ★

MARS-GT series cameras get better performance with POLS-GEV frame grabber. Based on the PCIe Gen3 interface bus and GigE Vision V1.2 protocol, the POLS-GEV can acquire images at a speed of 10Gbps per channel (up to 4 channels) and transfer the images to host memory through the PCIe Gen3×8 slot.

Model	Resolution	Frame Rate (fps)	Sensor	Pixel Size	Data Interface	Spectrum

MARS-170-662GTM	1600×1104	662	1.1" IMX425 Global shutter CMOS	9.0μm	10GigE	Mono
Resolution:1600×1104 Frame Rate (fps):662 Sensor:1.1" IMX425 Global shutter CMOS Pixel Size:9.0μm Data Interface:10GigE Spectrum:Mono
MARS-170-662GTC	1600×1104	662	1.1" IMX425 Global shutter CMOS	9.0μm	10GigE	Color
Resolution:1600×1104 Frame Rate (fps):662 Sensor:1.1" IMX425 Global shutter CMOS Pixel Size:9.0μm Data Interface:10GigE Spectrum:Color
MARS-280-409GTM	1936×1464	409	2/3" IMX421 Global shutter CMOS	4.5μm	10GigE	Mono
Resolution:1936×1464 Frame Rate (fps):409 Sensor:2/3" IMX421 Global shutter CMOS Pixel Size:4.5μm Data Interface:10GigE Spectrum:Mono
MARS-280-409GTC	1936×1464	409	2/3" IMX421 Global shutter CMOS	4.5μm	10GigE	Color
Resolution:1936×1464 Frame Rate (fps):409 Sensor:2/3" IMX421 Global shutter CMOS Pixel Size:4.5μm Data Interface:10GigE Spectrum:Color
MARS-321-173GTM-TN-SWIR F02	2080×1544	176	1/1.8" IMX993 Global shutter CMOS	3.45μm	10GigE	Mono/SWIR
Resolution:2080×1544 Frame Rate (fps):176 Sensor:1/1.8" IMX993 Global shutter CMOS Pixel Size:3.45μm Data Interface:10GigE Spectrum:Mono/SWIR
MARS-533-134GTM-TN-SWIR F02	2592×2056	134	1/1.4" IMX992 Global shutter CMOS	3.45μm	10GigE	Mono/SWIR
Resolution:2592×2056 Frame Rate (fps):134 Sensor:1/1.4" IMX992 Global shutter CMOS Pixel Size:3.45μm Data Interface:10GigE Spectrum:Mono/SWIR
MARS-561-207GTM	2592×2160	207.77	1/2" GMAX2505 Global shutter CMOS	2.5μm	10GigE	Mono
Resolution:2592×2160 Frame Rate (fps):207.77 Sensor:1/2" GMAX2505 Global shutter CMOS Pixel Size:2.5μm Data Interface:10GigE Spectrum:Mono
MARS-561-207GTC	2592×2160	207.77	1/2" GMAX2505 Global shutter CMOS	2.5μm	10GigE	Color
Resolution:2592×2160 Frame Rate (fps):207.77 Sensor:1/2" GMAX2505 Global shutter CMOS Pixel Size:2.5μm Data Interface:10GigE Spectrum:Color
MARS-900-120GTM	4192×2160	120.36	2/3" GMAX2509 Global shutter CMOS	2.5μm	10GigE	Mono
Resolution:4192×2160 Frame Rate (fps):120.36 Sensor:2/3" GMAX2509 Global shutter CMOS Pixel Size:2.5μm Data Interface:10GigE Spectrum:Mono
MARS-900-120GTC	4192×2160	120.36	2/3" GMAX2509 Global shutter CMOS	2.5μm	10GigE	Color
Resolution:4192×2160 Frame Rate (fps):120.36 Sensor:2/3" GMAX2509 Global shutter CMOS Pixel Size:2.5μm Data Interface:10GigE Spectrum:Color
MARS-1261-90GTM	4096×3072	89.9	1" XGS12000 Global shutter CMOS	3.2μm	10GigE	Mono
Resolution:4096×3072 Frame Rate (fps):89.9 Sensor:1" XGS12000 Global shutter CMOS Pixel Size:3.2μm Data Interface:10GigE Spectrum:Mono
MARS-1261-90GTC	4096×3072	89.9	1" XGS12000 Global shutter CMOS	3.2μm	10GigE	Color
Resolution:4096×3072 Frame Rate (fps):89.9 Sensor:1" XGS12000 Global shutter CMOS Pixel Size:3.2μm Data Interface:10GigE Spectrum:Color
MARS-1610-52GTM	5328×3040	52	1.1" IMX542 Global shutter CMOS	2.74μm	10GigE	Mono
Resolution:5328×3040 Frame Rate (fps):52 Sensor:1.1" IMX542 Global shutter CMOS Pixel Size:2.74μm Data Interface:10GigE Spectrum:Mono
MARS-1610-52GTC	5328×3040	52	1.1" IMX542 Global shutter CMOS	2.74μm	10GigE	Color
Resolution:5328×3040 Frame Rate (fps):52 Sensor:1.1" IMX542 Global shutter CMOS Pixel Size:2.74μm Data Interface:10GigE Spectrum:Color
MARS-1840-63GTM	4496×4096	63.78	1" GMAX2518 Global shutter CMOS	2.5μm	10GigE	Mono
Resolution:4496×4096 Frame Rate (fps):63.78 Sensor:1" GMAX2518 Global shutter CMOS Pixel Size:2.5μm Data Interface:10GigE Spectrum:Mono
MARS-1840-63GTC	4496×4096	63.78	1" GMAX2518 Global shutter CMOS	2.5μm	10GigE	Mono
Resolution:4496×4096 Frame Rate (fps):63.78 Sensor:1" GMAX2518 Global shutter CMOS Pixel Size:2.5μm Data Interface:10GigE Spectrum:Mono
MARS-2020-42GTM	4512×4512	38.3	1.1" IMX541 Global shutter CMOS	2.74μm	10GigE	Mono
Resolution:4512×4512 Frame Rate (fps):38.3 Sensor:1.1" IMX541 Global shutter CMOS Pixel Size:2.74μm Data Interface:10GigE Spectrum:Mono
MARS-2020-42GTC	4512×4512	38.3	1.1" IMX541 Global shutter CMOS	2.74μm	10GigE	Color
Resolution:4512×4512 Frame Rate (fps):38.3 Sensor:1.1" IMX541 Global shutter CMOS Pixel Size:2.74μm Data Interface:10GigE Spectrum:Color
MARS-2621-42GTM	5120×5120	41.8	1.1" GMAX0505 Global shutter CMOS	2.5μm	10GigE	Mono
Resolution:5120×5120 Frame Rate (fps):41.8 Sensor:1.1" GMAX0505 Global shutter CMOS Pixel Size:2.5μm Data Interface:10GigE Spectrum:Mono
MARS-2621-42GTC	5120×5120	41.8	1.1" GMAX0505 Global shutter CMOS	2.5μm	10GigE	Color
Resolution:5120×5120 Frame Rate (fps):41.8 Sensor:1.1" GMAX0505 Global shutter CMOS Pixel Size:2.5μm Data Interface:10GigE Spectrum:Color
MARS-2621-42GTM-NIR	5120×5120	41.8	1.1" GMAX0505 Global shutter CMOS	2.5μm	10GigE	NIR
Resolution:5120×5120 Frame Rate (fps):41.8 Sensor:1.1" GMAX0505 Global shutter CMOS Pixel Size:2.5μm Data Interface:10GigE Spectrum:NIR
MARS-2440-35GTM	5328×4608	35	1.2" IMX540 Global shutter CMOS	2.74μm	10GigE	Mono
Resolution:5328×4608 Frame Rate (fps):35 Sensor:1.2" IMX540 Global shutter CMOS Pixel Size:2.74μm Data Interface:10GigE Spectrum:Mono
MARS-2440-35GTC	5328×4608	35	1.2" IMX540 Global shutter CMOS	2.74μm	10GigE	Color
Resolution:5328×4608 Frame Rate (fps):35 Sensor:1.2" IMX540 Global shutter CMOS Pixel Size:2.74μm Data Interface:10GigE Spectrum:Color
MARS-5000-24GTM	7008×7000	24.7	2" GMAX3249 Global shutter CMOS	3.2μm	10GigE	Mono
Resolution:7008×7000 Frame Rate (fps):24.7 Sensor:2" GMAX3249 Global shutter CMOS Pixel Size:3.2μm Data Interface:10GigE Spectrum:Mono
MARS-5000-24GTC	7008×7000	24.7	2" GMAX3249 Global shutter CMOS	3.2μm	10GigE	Color
Resolution:7008×7000 Frame Rate (fps):24.7 Sensor:2" GMAX3249 Global shutter CMOS Pixel Size:3.2μm Data Interface:10GigE Spectrum:Color
MARS-5000-24GTM-NF	7008×7000	24.7	2" GMAX3249 Global shutter CMOS	3.2μm	10GigE	Mono
Resolution:7008×7000 Frame Rate (fps):24.7 Sensor:2" GMAX3249 Global shutter CMOS Pixel Size:3.2μm Data Interface:10GigE Spectrum:Mono
MARS-5000-24GTC-NF	7008×7000	24.7	2" GMAX3249 Global shutter CMOS	3.2μm	10GigE	Color
Resolution:7008×7000 Frame Rate (fps):24.7 Sensor:2" GMAX3249 Global shutter CMOS Pixel Size:3.2μm Data Interface:10GigE Spectrum:Color
MARS-6500-18GTM	9344×7000	17.73	2.3" GMAX3265 Global shutter CMOS	3.2μm	10GigE	Mono
Resolution:9344×7000 Frame Rate (fps):17.73 Sensor:2.3" GMAX3265 Global shutter CMOS Pixel Size:3.2μm Data Interface:10GigE Spectrum:Mono
MARS-6500-18GTC	9344×7000	17.73	2.3" GMAX3265 Global shutter CMOS	3.2μm	10GigE	Color
Resolution:9344×7000 Frame Rate (fps):17.73 Sensor:2.3" GMAX3265 Global shutter CMOS Pixel Size:3.2μm Data Interface:10GigE Spectrum:Color
MARS-6500-18GTM-NF	9344×7000	17.73	2.3" GMAX3265 Global shutter CMOS	3.2μm	10GigE	Mono
Resolution:9344×7000 Frame Rate (fps):17.73 Sensor:2.3" GMAX3265 Global shutter CMOS Pixel Size:3.2μm Data Interface:10GigE Spectrum:Mono
