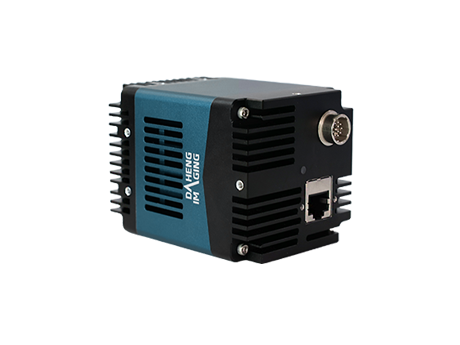

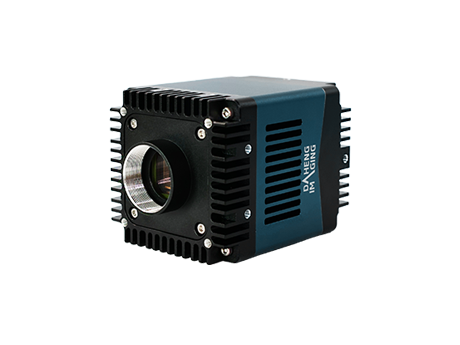

MARS-533-134GTM-TN-SWIR F02

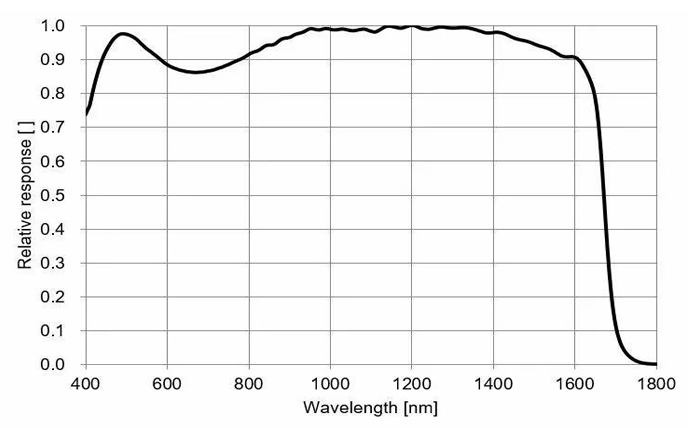

The MARS-533-134GTM-TN-SWIR F02 is a newly launched shortwave infrared 10 GigE camera. The camera is equipped with Sony IMX992 high-sensitivity sensor which adopts SenSWIR technology, it can capture wideband image information of visible light and shortwave infrared in the range of 400nm~1700nm. This camera can replace the traditional "visible light camera+shortwave infrared camera", and its broadband characteristics are suitable for multispectral applications. At the same time, the camera has a high frame rate, which is very suitable for semiconductor detection applications.

Features

Time Stamp, ROI, Binning, Decimation, Reverse X/Y
Timer, Counter, LUTs and User Set Control
Gamma, Black Level, Digital Shift

Remove Parameter Limit to expand the range of Parameter
Static Defect Correction, Sharpness, Noise Reduction
Flat Field Correction, Dark Field Correction, Bright Field Correction

Specifications

Model	MARS-533-134GTM-TN-SWIR F02
Product Families	MARS
Resolution	2592×2056
Frame Rate (fps)	134
Sensor Manufacturer	Sony
Sensor	1/1.4" IMX992 Global shutter CMOS
Pixel Size	3.45μm
Pixel Bit Depth	8 bit，10 bit，12 bit
Data Interface	10GigE
Lens Mount	C
Spectrum	Mono，SWIR
Pixel Formats	Mono8，Mono10，Mono10p，Mono12，Mono12p
Signal Noise Ratio	46.41 dB
Exposure Time	UltraShort: 8μs~100μs, Standard: 21μs ~ 1s
Gain	0dB ~ 24dB
Binning	1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4
Decimation	Sensor: 1×1, 2×2
Reverse X/Y	Reverse X/Y
I/O Interface	1 input and 1 output with opto-isolated, 1 bidirectional programmable GPIO
Power Requirement	24 VDC
Power Consumption	10.5 W @ 24 VDC
Operating Temp.	0°C ~ +45°C
Storage Temp.	-20°C ~ +70°C
Operating Humidity	10% ~ 80%
Dimensions (W×H×L)	60 mm × 60 mm × 80.5 mm
Weight	495 g
Conformity	CE, RoHS, FCC, ICES, UKCA, GigE Vision, GenICam
