POLS-C12-2T-G34

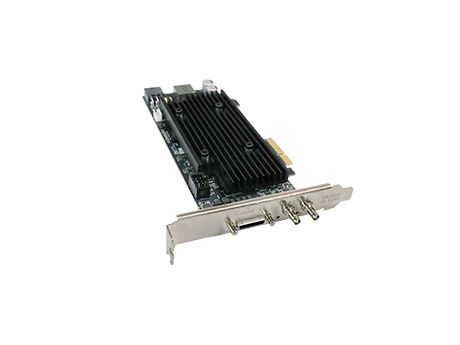

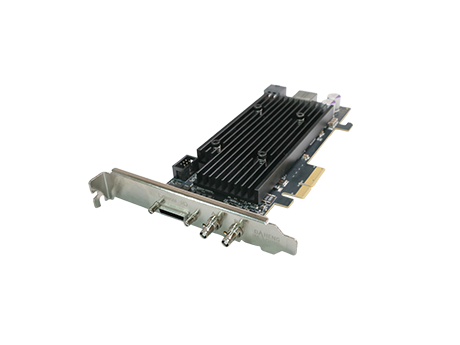

POLS-C12-2T-G34 is based on the industry standard PCIe Gen3 bus and CoaXPress2.0 protocol, which can realize high-speed image acquisition and data transmission. POLS-C12-2T-G34 can acquire images at a speed of 12.5Gbps per channel (up to 2 channels) and transfer the images to host memory through the PCIe×4 slot.

Features
  • PCIe Gen3×4 bus: 3350 MB/s bus bandwidth

  • The transmission speed is up to 12.5Gbps per channel (CXP-12)

  • Rich I/Os

  • Convert Bayer to RGB

  • Red-Blue conversion

  • Power over CoaXPress

  • Encoder control, Timer

Specifications
Model POLS-C12-2T-G34
Product Families POLARIS
Interface CoaXPress
Connectors HD-BNC
Memory 2GB DDR4 SDRAM
Bus PCIe Gen3 × 4
Supported Cameras 2
SDK GalaxyView 2.2 or above
Downloads
  • POLS-C12-2T-G34-Datasheet-EN_V25.04.02

    Size:614.04 KB

    Download
