The MER2-160-75GC camera is a color GigE Vision camera with the Sony IMX273 CMOS sensor. Thanks to the extremely compact (29mm×29mm), robust metal housings and locking screw connectors, the MERCURY2 cameras can secure the reliability of cameras deployed in harsh environments. The MER2-160-75GC camera has opto-isolated I/Os. The GPIOs give cameras maximum flexibility to adapt to specific needs.
Auto Gain, Auto Exposure, ROI
Binning, Decimation
Timer, Counter, LUTs and User Set Control
Gamma, Black Level, Digital Shift, Sharpness
Support Light Source Preset, Color Transformation Control, Saturation and White Balance
Remove Parameter Limits
16KB User Data Area
Model | MER2-160-75GC |
Product Families | MERCURY2 |
Resolution | 1440×1080 |
Frame Rate (fps) | 75.6 |
Sensor Manufacturer | Sony |
Sensor | 1/2.9" IMX273 Global shutter CMOS |
Pixel Size | 3.45μm |
Pixel Bit Depth | 8 bit, 12 bit |
Data Interface | GigE |
Lens Mount | C,CS |
Spectrum | Color |
Pixel Formats | Bayer RG8, Bayer RG12 |
Signal Noise Ratio | 40.75 dB |
Power Requirement | 12 ~ 24 VDC |
Power Consumption | < 3 W @ 24 VDC |
Operating Temp. | 0°C ~ +45°C |
Storage Temp. | -20°C ~ +70°C |
Operating Humidity | 10% ~ 80% |
Dimensions (W×H×L) | 29 mm × 29 mm × 29 mm (w/o connectors) |
Weight | 65 g |
Conformity | CE, FCC, RoHS, GigE Vision, GenICam |
Cable Length: 3m, 5m, 7m, 10m, 20m
Characteristic: Static, Highflex
Connector Angle: Standard, 90° angled (up, down, left, right)
Connector Camera Side: RJ45, screw lock optional
Connector Host Side: RJ45
Cable Length: 1.5m, 3m, 5m
Characteristic: Static, Highflex
Connector Angle: Straight, 90° angled (up, down, left, right)
Connector Camera Side: 8-pin, 6-pin (ME2S), 12-pin (MARS)
Connector Host Side: Open, Open&DC
Manufacturer: DAHENG IMAGING, IOI, Intel, ADLINK
Channel: 1, 2, 4
Port: 1, 2, 4
Interface: GigE (PoE optional)
Optional:

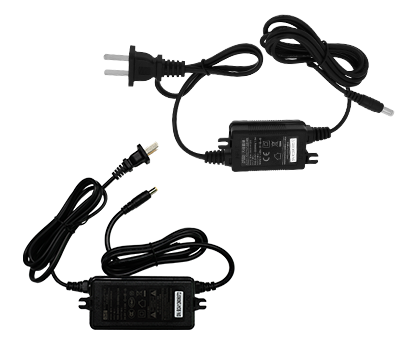

12V 1.25A DC Power Supply
12V 2A DC Power Supply
