MER2-630-18GM-W90-S90

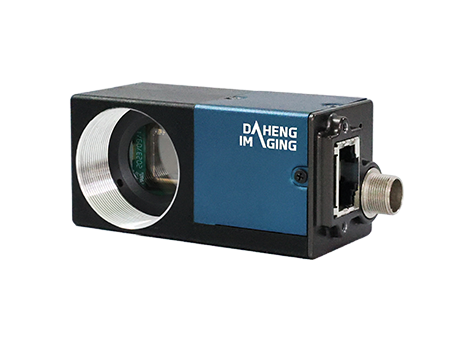

The MER2-630-18GM-W90-S90 camera is a monochrome GigE Vision camera with the Sony IMX178 CMOS sensor. The sensor surface is at a 90 degree angle to the Data interface surface. Thanks to the extremely compact (29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY2 cameras can secure the reliability of cameras deployed in harsh environments.

Features

Auto Gain, Auto Exposure, ROI
Global Reset Release Shutter exposure (GRR)
Binning, Decimation
Timer, Counter, LUTs and User Set Control

Gamma, Black Level, Digital Shift, Sharpness
Noise Reduction
Remove Parameter Limits
16KB User Data Area

Specifications

Model	MER2-630-18GM-W90-S90
Product Families	MERCURY2
Resolution	3088×2064
Frame Rate (fps)	18.45
Sensor Manufacturer	Sony
Sensor	1/1.8" IMX178 Rolling shutter CMOS
Pixel Size	2.4μm
Pixel Bit Depth	8 bit，12 bit
Data Interface	GigE
Lens Mount	C，CS
Spectrum	Mono
Pixel Formats	Mono8，Mono12
Signal Noise Ratio	39.97 dB
Exposure Time	Standard: 19μs ~ 1s
Gain	0dB ~ 24dB
Binning	1×1, 1×2, 2×1, 2×2
Decimation	FPGA: 1×1, 1×2, 2×1, 2×2
Reverse X/Y	Reverse X/Y
I/O Interface	1 input and 1 output with opto-isolated, 2 programmable GPIOs
Power Requirement	12 ~ 24 VDC
Power Consumption	< 3 W @ 24 VDC
Operating Temp.	0°C ~ +45°C
Storage Temp.	-20°C ~ +70°C
Operating Humidity	10% ~ 80%
Dimensions (W×H×L)	29 mm × 29 mm × 58.8 mm
Weight	80 g
Conformity	CE, RoHS, FCC, ICES, UKCA, GigE Vision, GenICam
