ME2P-1231-32U3M POL

The ME2P-1231-32U3M POL camera is a monochrome polarization USB3.0 Vision camera with the Sony IMX253MZR CMOS sensor. The ME2P-1231-32U3M POL camera has opto-isolated I/Os that adapt to specific needs. Four-side mounting holes provide maximum installation flexibility for ME2P-U3. Thanks to the extremely compact (36mm × 31mm × 38.8mm), robust metal housings and locking screw connectors, the MERCURY2 Plus cameras can secure the reliability of cameras deployed in harsh environments.

Features

Trigger mode: Frame Start / Frame Burst Start
Support timed exposure mode and triggerWidth exposure mode.
Two exposure time modes: Standard / UltraShort
Support Gamma, Binning, Decimation, Digital Shift and Black Level

Support Sequencer Control, Sensor Bit Depth, Timer and Counter
Programmable LUTs and User Set Control
Support Support Remove Parameter Limit to expand the range of exposure, gain, and so on
16KB data storage area for saving algorithm coefficients and parameter configuration

Specifications

Model	ME2P-1231-32U3M POL
Product Families	MERCURY2 Plus
Resolution	4096×3000
Frame Rate (fps)	32.1
Sensor Manufacturer	Sony
Sensor	1.1" IMX253MZR Global shutter CMOS
Pixel Size	3.45μm
Pixel Bit Depth	8 bit，10 bit，12 bit
Data Interface	USB3.0
Lens Mount	C，CS

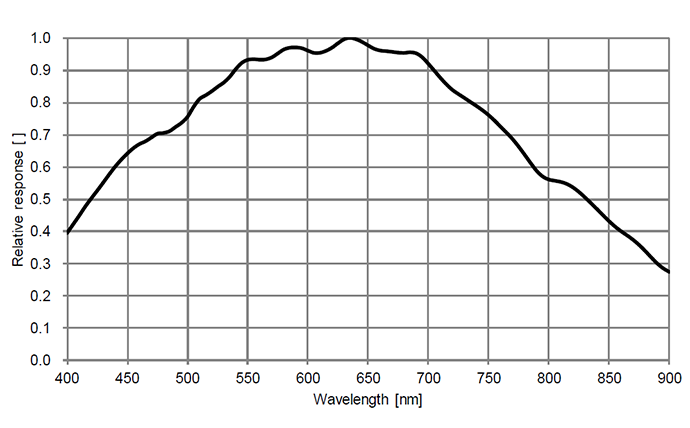

Spectrum	Mono
Pixel Formats	Mono8，Mono10，Mono12
Signal Noise Ratio	40.76 dB
Exposure Time	UltraShort: 1μs~100μs, Standard: 24μs ~ 1s
Gain	0dB ~ 24dB
Binning	FPGA: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4, Sensor: 1×1, 1×2
Decimation	Sensor: 1×1, 2×2
Reverse X/Y	Reverse X/Y
I/O Interface	1 input and 1 output with opto-isolated, 2 programmable GPIOs
Power Requirement	Power over USB3.0
Power Consumption	3.05 W @ 5 VDC
Operating Temp.	0°C ~ +45°C
Storage Temp.	-20°C ~ +70°C
Operating Humidity	10% ~ 80%
Dimensions (W×H×L)	36 mm × 31 mm × 38.8 mm
Weight	66 g
Conformity	CE, RoHS, FCC, ICES, UKCA, USB3.0 Vision, GenICam
