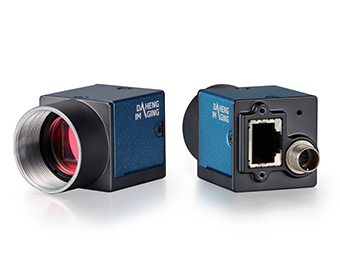

The MER2-507-23GM-P NIR camera is a NIR GigE Vision camera with the ON AR0522 CMOS sensor. Thanks to the extremely compact (29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY2 cameras can secure the reliability of cameras deployed in harsh environments. The MER2-507-23GM-P NIR camera has opto-isolated I/Os. The GPIOs give cameras maximum flexibility to adapt to specific needs.
Auto Gain, Auto Exposure, ROI
Binning, Decimation
Timer, Counter, LUTs and User Set Control
Gamma, Black Level, Digital Shift, Dynamic Defect Correction, Sharpness, Noise Reduction
Remove Parameter Limits
16KB User Data Area
| Model | MER2-507-23GM-P NIR |
| Product Families | MERCURY2 |
| Resolution | 2592×1944 |
| Frame Rate (fps) | 23.3 |
| Sensor Manufacturer | On Semi |
| Sensor | 1/2.5" AR0522 Rolling shutter CMOS |
| Pixel Size | 2.2μm |
| Pixel Bit Depth | 8 bit，12 bit |
| Data Interface | GigE |
| Lens Mount | C，CS |
| Spectrum | Mono，NIR |
| Pixel Formats | Mono8，Mono12 |
| Power Requirement | 12 ~ 24 VDC or PoE |
| Power Consumption | < 3 W @ 24 VDC；< 3.75 W @ PoE |
| Operating Temp. | 0°C ~ +45°C |
| Storage Temp. | -20°C ~ +70°C |
| Operating Humidity | 10% ~ 80% |
| Dimensions (W×H×L) | 29 mm × 29 mm × 40.3 mm (w/o connectors) |
| Weight | 75 g |
| Conformity | CE，FCC，RoHS，GigE Vision，GenICam，IEEE802.3af |
Cable Length: 3m, 5m, 7m, 10m, 20m
Characteristic: Static, Highflex
Connector Angle: Standard, 90° angled (up, down, left, right)
Connector Camera Side: RJ45, screw lock optional
Connector Host Side: RJ45
Cable Length: 1.5m, 3m, 5m
Characteristic: Static, Highflex
Connector Angle: Straight, 90° angled (up, down, left, right)
Connector Camera Side: 8-pin, 6-pin (ME2S), 12-pin (MARS)
Connector Host Side: Open, Open&DC
Manufacturer: DAHENG IMAGING, IOI, Intel, ADLINK
Channel: 1, 2, 4
Port: 1, 2, 4
Interface: GigE (PoE optional)
Optional:
12V 1.25A DC Power Supply
12V 2A DC Power Supply
