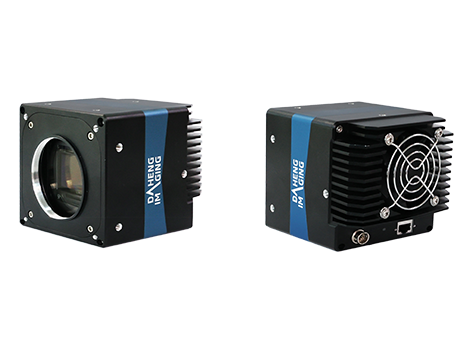

MARS-6100-18GTM-TF

The MARS-6100-18GTM-TF is a monochrome GigE Vision camera with the Sony IMX455 Rolling Shutter CMOS sensor. The MARS-6100-18GTM-TF is capable of 10Gbit/s maximum transfer data rate, and has opto-isolated I/Os. Thanks to locking screw connectors, the MARS cameras can secure the reliability of cameras deployed in harsh environments. The MARS cameras are industrial cameras with high reliability and high performance ratio.

Features

Time Stamp, Binning, Decimation, Reverse X
The Sequencer Control supports multiple sets of parameters configuration
Trigger mode: Frame Start /Frame Burst Start
Gain, GainAuto, Gamma, Black Level, Digital Shift, Flat Field Correction

Static Defect Correction, Hot Pixel Correction, Sharpness, Noise Reduction
Timer, Counter, LUTs and User Set Control
Remove Parameter Limit to expand the range of Parameter
Data storage area for saving algorithm coefficients and parameter configuration
TEC+Fan Cooling

Specifications

Model	MARS-6100-18GTM-TF
Product Families	MARS
Resolution	9568×6380
Frame Rate (fps)	17.9
Sensor Manufacturer	Sony
Sensor	2.7" Sony IMX455 Rolling shutter CMOS
Pixel Size	3.76μm
Pixel Bit Depth	12 bit，14 bit，16 bit
Data Interface	10GigE
Lens Mount	F，M58
Spectrum	Mono
Pixel Formats	Mono8，Mono12，Mono14，Mono16
Signal Noise Ratio	46.86 dB
Exposure Time	34μs ~ 300s
Gain	0dB ~ 36dB
Binning	1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4
Decimation	1×1, 2×2
Reverse X/Y	Reverse X
I/O Interface	1 input and 1 output with opto-isolated, 1 bidirectional programmable GPIO
Power Requirement	12~24 VDC
Power Consumption	< 38 W @ 24 VDC
Operating Temp.	0°C ~ +50°C
Storage Temp.	-20°C ~ +70°C
Operating Humidity	10% ~ 80%
Dimensions (W×H×L)	100mm × 100mm × 113.95mm(M58), 100mm × 100mm × 141mm(F)
Weight	1590 g
Conformity	CE, RoHS, FCC, ICES, UKCA, GigE Vision, GenICam
