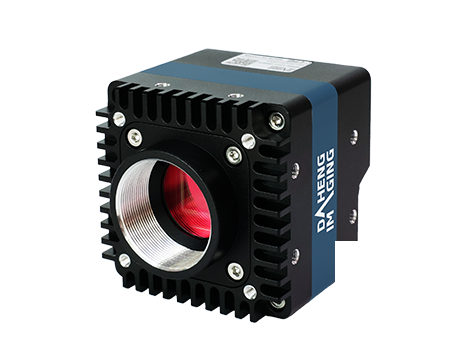

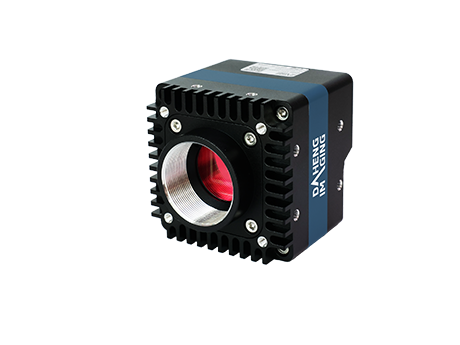

MARS-1222-178X2C

The MARS-1222-178X2C camera is equipped with global shutter sensor and uses CoaXPress2.0 interface for high-speed transmission of image data, featuring high quality images, extremely low power, small housing, and stable operating capability. The camera is capable of 12.5Gbit/s maximum transfer data rate, support PoCXP and can secure the reliability of cameras deployed in harsh industrial environments.The cameras are industrial cameras with high reliability, high transmission speed and high image quality.

Features

The Sequencer Control supports multiple sets of parameters configuration
Brightness, Contrast, Gamma, Sharpness, Noise Reduction, Black Level, Timer, Counter, LUTs and User Set Control

Support Light Source Preset, Color Transformation Control, Saturation and Hue
DAHENG IMAGING or third-party frame grabbers are available

Specifications

Model	MARS-1222-178X2C
Product Families	MARS
Resolution	4128×3008
Frame Rate (fps)	178
Sensor Manufacturer	Sony
Sensor	1/1.1" Sony IMX535 Global shutter CMOS
Pixel Size	2.74μm
Pixel Bit Depth	8 bit，10 bit，12 bit

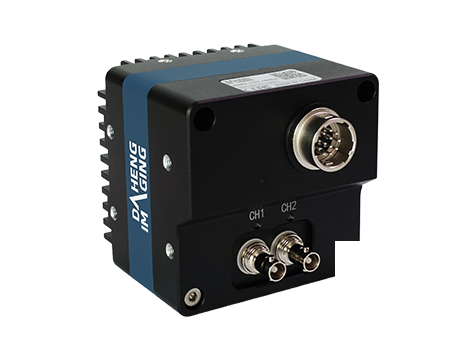

Data Interface	CoaXPress
Lens Mount	C

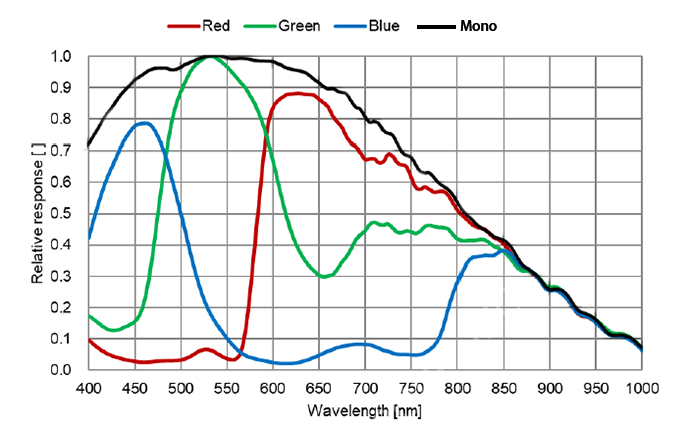

Spectrum	Color
Pixel Formats	Bayer RG8, Bayer RG10, Bayer RG12
Signal Noise Ratio	39.69 dB
Exposure Time	Standard: 3μs ~ 1s, UltraShort: 1μs ~ 2.4μs
Gain	Digital Gain: 0dB~16dB, Analog Gain: 10bit: 1×, 12bit: 1× ~ 12.19×
Binning	-
Decimation	2×2
Reverse X/Y	Reverse X/Y
I/O Interface	1 input and 1 output with opto-isolated, 1 bidirectional GPIO, 1 RS232
Power Requirement	PoCXP
Power Consumption	5.9W @ PoCXP
Operating Temp.	0°C ~ +45°C
Storage Temp.	-20°C ~ +70°C
Operating Humidity	10% ~ 80%
Dimensions (W×H×L)	50mm × 50mm × 59.2mm
Weight	184 g
Conformity	CE, RoHS, FCC, ICES, UKCA, CoaXPress2.0, GenICam
