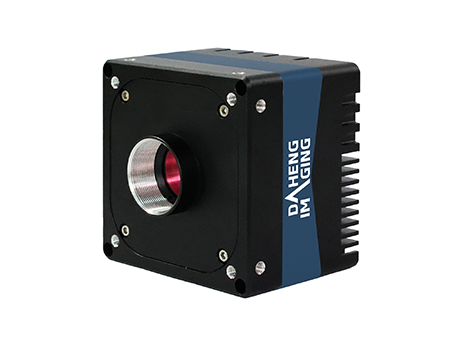

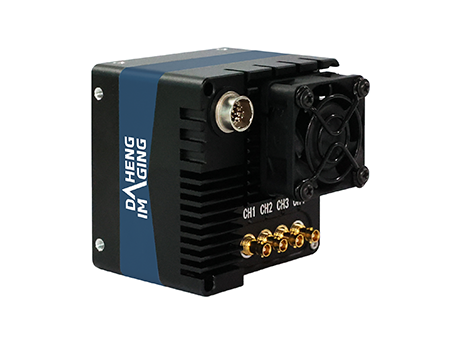

MARS-2442-192X2C-NF camera uses CoaXPress interface for high-speed transmission of image data. The camera is equipped with cooling fan, which can effectively reduce thermal noise and generate highquality images.
FFC, Hot Pixel Correction
Multi Slope Exposure
The Sequencer Control supports parameter configuration of exposure, gain, and FFC up to 16 groups
Gamma, Black Level, Timer, Counter and LUTs
DAHENG IMAGING or third-party frame grabbers are available
| Model | MARS-2442-192X2C-NF |
| Product Families | MARS |
| Resolution | 5312×4608 |
| Frame Rate (fps) | 192.01 |
| Sensor Manufacturer | Sony |
| Sensor | 14.55mm × 12.63mm Sony IMX935 Global shutter CMOS |
| Pixel Size | 2.74μm |
| Pixel Bit Depth | 8 bit, 10 bit, 12 bit |
| Data Interface | CoaXPress |
| Lens Mount | C |

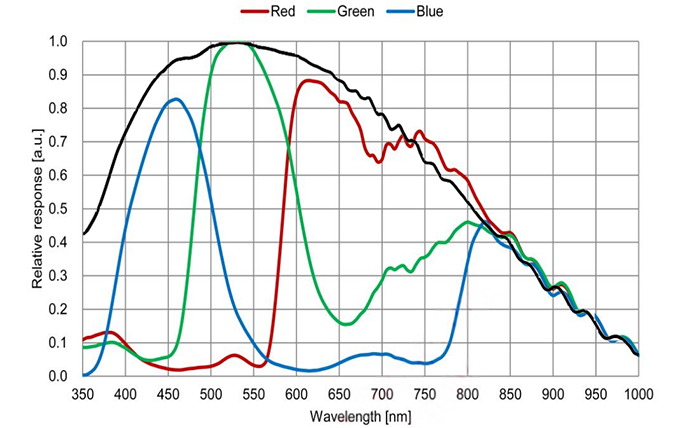

| Spectrum | Color |
| Pixel Formats | Bayer RG8, Bayer RG10, Bayer RG12 |
| Signal Noise Ratio | 39.8 dB |
| Exposure Time | 5μs ~ 1s |
| Gain | Digital Gain: 0dB~16dB, Analog Gain (the pixel bit depth is Bpp10): 0dB~18dB, Analog Gain (the pixel bit depth is Bpp12): 0dB~24dB |
| Binning | - |
| Decimation | 1×1, 2×2 |
| Reverse X/Y | Reverse X/Y |
| I/O Interface | 1 input and 1 output with opto-isolated, 1 bidirectional GPIO, 1 RS232 |
| Power Requirement | 24 VDC or PoCXP |
| Power Consumption | 13.701W@24V |
| Operating Temp. | 0°C ~ +45°C |
| Storage Temp. | -20°C ~ +70°C |
| Operating Humidity | 10% ~ 80% |
| Dimensions (W×H×L) | 74mm × 74mm × 76mm |
| Weight | 510 g |
| Conformity | CE, RoHS, FCC, ICES, UKCA, CoaXPress2.0, GenICam |
Cable Length: 3m, 5m, 7m, 10m, 15m
Characteristic: Highflex
Connector Angle: Straight, 90° angled (up, down, left, right)
Connector Camera Side: HD-BNC
Connector Frame Grabber Side: HD-BNC
Cable Length: 1.5m, 3m, 5m, 7m, 10m
Characteristic: Static, Highflex
Connector Angle: Straight, 90° angled (up, down, left, right)
Connector Camera Side: 12-pin
Connector Host Side: Open, Open&DC
Optional:
12V 2A DC Power Supply
24V 2A DC Power Supply
MARS-TF/MARS-GT-SWIR only support 24VDC
