MER3-506-58G3M-P

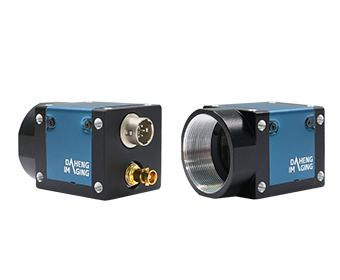

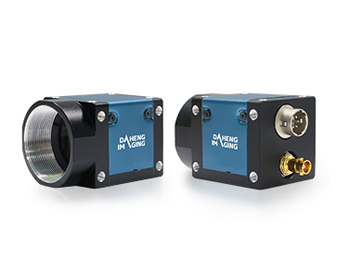

The MER3-506-58G3M-P camera is a monochrome GigE Vision camera with the Sony "Pregius S" CMOS sensor and high performance FPGA. The MER3-506-58G3M-P camera is capable of 2.5Gbit/s maximum transfer data rate, and has opto-isolated I/Os that adapt to specific needs. Four-side mounting holes provide maximum installation flexibility for camera. Thanks to the extremely compact (29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY3 cameras can secure the reliability of cameras deployed in harsh environments.

Features

The Sequencer Control supports multiple sets of parameters configuration
Decimation, Gamma, Digital Shift and Black Level
Burst Acquisition

Timed exposure mode and TriggerWidth exposure mode
Timer, Counter, LUTs and User Set Control

Specifications

Model	MER3-506-58G3M-P
Product Families	MERCURY3
Resolution	2448×2048
Frame Rate (fps)	58.6
Sensor Manufacturer	Sony
Sensor	1/1.8" IMX547 Global shutter CMOS
Pixel Size	2.74μm
Pixel Bit Depth	8 bit, 12 bit
Data Interface	2.5GigE
Lens Mount	C
Spectrum	Mono
Pixel Formats	Mono8, Mono12
Signal Noise Ratio	39.82 dB
Exposure Time	UltraShort: 1μs~2.4μs; Standard: 3μs~20μs
Gain	0dB ~ 16dB
Binning	Sensor: 1×1, 2×2
Decimation	Sensor: 1×1, 2×2
Reverse X/Y	Reverse X/Y
I/O Interface	1 input with opto-isolated, 2 programmable GPIOs
Power Requirement	PoE (Power over Ethernet, IEEE802.3af compliant) or 12VDC-10% ~ 24VDC+10%
Power Consumption	< 5.5 W @ 12V / PoE
Operating Temp.	0°C ~ +50°C
Storage Temp.	-20°C ~ +70°C
Operating Humidity	10% ~ 80%
Dimensions (W×H×L)	29 mm × 29 mm × 50.6 mm (w/o connectors)
Weight	69 g
Conformity	CE, RoHS, GigE Vision, GenICam，IEEE802.3af
