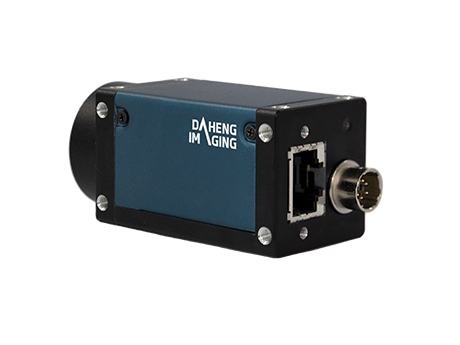

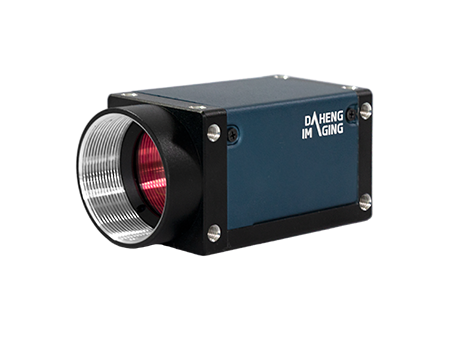

MER3-033-262G3M-P-SWIR F02

The MER3-033-262G3M-P-SWIR F02 camera is a SWIR GigE Vision camera with Sony IMX991 global shutter CMOS sensor and high performance FPGA. The MER3-033-262G3M-P-SWIR F02 camera is capable of 2.5Gbit/s maximum transfer data rate, and has opto-isolated I/Os that adapt to specific needs. Four-side mounting holes provide maximum installation flexibility for camera. Thanks to the extremely compact (29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY3 cameras can secure the reliability of cameras deployed in harsh environments.

Features

The Sequencer Control supports multiple sets of parameters configuration
Decimation, Gamma, Digital Shift and Black Level
Burst Acquisition

Timed exposure mode and TriggerWidth exposure mode
Two exposure modes: Standard / UltraShort
Timer, Counter, LUTs and User Set Control

Specifications

Model	MER3-033-262G3M-P-SWIR F02
Product Families	MERCURY3
Resolution	640×512
Frame Rate (fps)	139.33
Sensor Manufacturer	Sony
Sensor	1/4" IMX991 Global shutter CMOS
Pixel Size	5μm
Pixel Bit Depth	8 bit, 10 bit, 12 bit
Data Interface	2.5GigE
Lens Mount	C

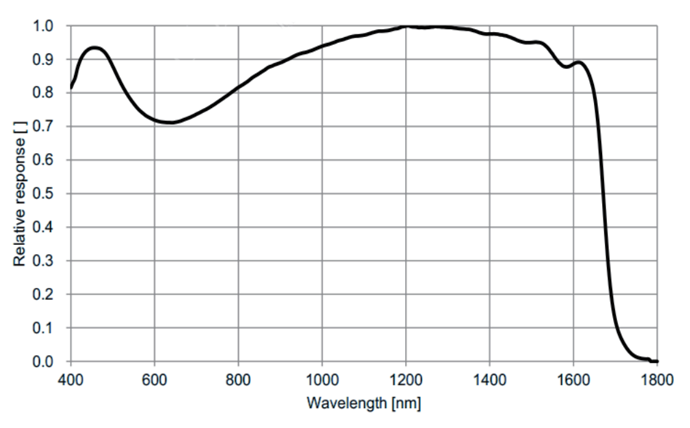

Spectrum	Mono，SWIR
Pixel Formats	Mono8，Mono10，Mono12
Signal Noise Ratio	50.99 dB
Exposure Time	UltraShort: 3μs~100μs, Standard: 13μs ~ 1s
Gain	0dB ~ 24dB
Binning	1×1, 1×2, 2×1, 2×2
Decimation	Sensor: 1×1, 2×2
Reverse X/Y	Reverse X/Y
I/O Interface	1 input with opto-isolated, 2 programmable GPIOs
Power Requirement	12 ~ 24 VDC or PoE
Power Consumption	< 5 W @ 12V / PoE
Operating Temp.	0°C ~ +50°C
Storage Temp.	-20°C ~ +70°C
Operating Humidity	10% ~ 80%
Dimensions (W×H×L)	29 mm × 29 mm × 50.6 mm (w/o connectors)
Weight	67 g
Conformity	CE, RoHS, FCC, ICES, UKCA, GigE Vision, GenICam
