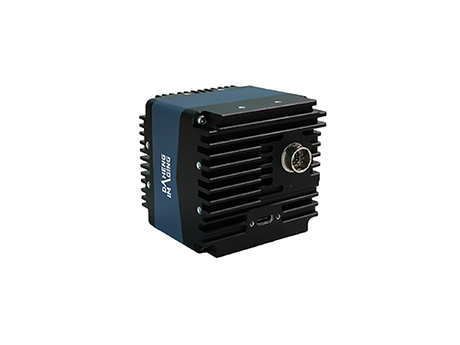

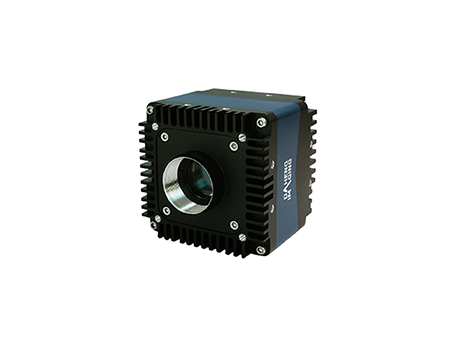

MARS-420-238U3DM-UV

The MARS-420-238U3DM-UV is equipped with a GSENSE6504BSI sensor, capturing broadband spectral images from 200nm to 1100nm. It adopts a USB3.2 interface for highspeed data transmission, and delivers high dynamic range and outstanding quantum efficiency. Four-sided mounting holes provide maximum installation flexibility for the camera, and locking screws ensure stable operation in harsh industrial environments.

Features

Gainmode provides multiple mode options for high-speed, high-dynamic, and high-sensitivity applications
16 bit sensor bit depth, 70.94dB high dynamic range

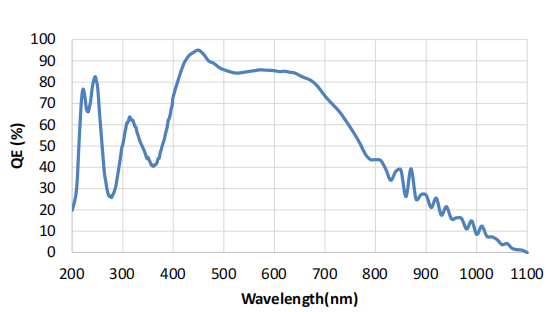

95% @ 450nm quantum efficiency

Time Stamp, ROI, Binning, Reverse X/Y, Sequencer Control
Timer, Counter, LUTs, User Set Control, Gamma and Black Level
Remove Parameter Limit
Static Defect Correction, Sharpness

Specifications

Model	MARS-420-238U3DM-UV
Product Families	MARS
Resolution	2048 × 2048
Frame Rate (fps)	238
Sensor Manufacturer	Gpixel
Sensor	SCMOS
Pixel Size	6.5μm
Pixel Bit Depth	8bit, 12bit, 16bit
Data Interface	USB3.2
Lens Mount	C，M42
Spectrum	UV
Pixel Formats	Mono8/Mono12/Mono12p@HighSpeed, Mono12/Mono12p@HighSensitivity, Mono16@HighDynamicRange
Signal Noise Ratio	41.56dB@HighDynamicRange, 30.29dB@HighSpeed, 30.06dB@HighSensitivity
Dynamic Range	70.94dB@HighDynamicRange, 57.32dB@HighSpeed, 57.32dB@HighSensitivity
Exposure Time	Standard: 20μs~0.5s
Gain	AnalogAll：10.5dB / 13.5dB, DigitalAll：0dB ~ 24dB
Binning	FPGA：1×1，1×2，1×4，2×1，2×2，2×4，4×1，4×2，4×4
Reverse X/Y	Reverse X/Y
I/O Interface	1 input and 1 output with opto-isolated, 1 bidirectional GPIO
Power Requirement	12VDC-10% ~ 24VDC+10%
Power Consumption	7.3W @ 12VDC
Operating Temp.	0° C ~ +45° C
Storage Temp.	19° C ~ +25° C
Operating Humidity	10% ~ 60%
Dimensions (W×H×L)	65mm × 65mm × 62.55mm
Weight	369 g
Conformity	CE，RoHS，FCC，ICES，UKCA，USB3 Vision®，GenICam®
